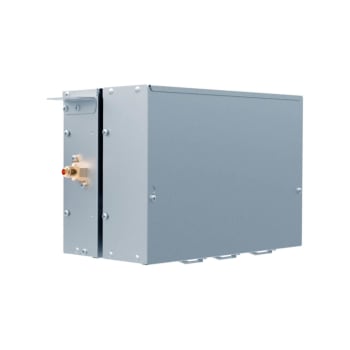

Air Handling Unit DX Kit (DDC Control)
40VA

Type: AHU DX kit

Type: DDC

Carrier offers a range of connection kits to connect XCT7 outdoor units to 3rd party DX AHU, with DDC control configuration

2 connections are possible:
- Mixed with VRF indoor units, AHU capacity should less than 30% of total capacity
- AHU alone In both cases (50% < indoor Max connection ratio < 100%)

Compatible with XCT7 top discharge up to 104HP (4 kits) & XCT7 side discharge (4 to 12HP)

Compatible with all XCT7 VRF control solutions


carrier-XCT-logo
  • Extend the AHU connected capacity per kit, ranging from 3.5 kW to 73 kW, which can meet small, medium and large buildings demands
  • Add the 0-10V signal control, for DDC configuration
  • Supply air temperature or return air temperature controllable
  • Remove the gas pipe, more convenient for installation
  • Save space through compact design
  • Extend the AHU connected capacity per kit, ranging from 3.5 kW to 73 kW, which can meet small, medium and large buildings demands
  • Add the 0-10V signal control, for DDC configuration
  • Supply air temperature or return air temperature controllable
  • Remove the gas pipe, more convenient for installation
  • Save space through compact design
carrier-video-variable-refrigerant-flow-systems-xct7
Carrier introduces XCT7, our latest generation of VRF systems
XCT7 VRF systems provide unmatched advantages for customers including improved reliability, enhanced system performance, high efficiency, a large operating range, easy installation and incredible flexibility.
carrier-video-screenshot-XCT7-Last-VRF
Carrier VRF: Side Discharge Outdoor units
This brand new range include Side Discharge outdoor units perfectly suited for small or narrow spaces.
With their compact design, XCT7 Side Discharge units are easy to install and maintain. Discover all XCT7 features in our video.
