Vector® HE 17 Trailer Refrigeration Unit
Versatility and Designed to Help Manage Total Cost of Ownership
The Vector HE 17 is Carrier Transicold's trailer refrigeration unit, engineered to deliver superior cooling performance or a range of transport applications. Based on Carrier's proven all-electric E Drive® architecture and advanced inverter technology, the Vector HE 17 is designed to help manage total cost of ownership (TCO).
Designed for Single-Temperature Trailer Applications
Designed for single-temperature trailer applications, the Vector HE 17 is equally suited to long-haul transportation and urban distribution, where quiet operation and operational reliability are critical.
By combining advanced system architecture, maintenance intervals and operational controls, the Vector HE 17 is designed to support fleet operators across Europe.
Vector HE 17 now available with R-454A refrigerant
The refrigerated transport industry is continually evolving adopting refrigerants with lower global warming potential (GWP). Many low-GWP refrigerant solutions belong to the A2L refrigerant class, which offers a lower GWP than traditional A1 refrigerants, while carrying a mild flammability classification. At Carrier Transicold, the adoption of lower-GWP refrigerants is supported by a safety-by-design approach.
Designed with Total Cost of Ownership in Mind
30% Fuel Reduction
Up to 30% reduction in fuel consumption*.
Lower CO₂ Emissions
Designed with features that support fuel consumption reduction.*
720 kg Optimised Weight
Lightweight design to support payload capacity.
Lifecycle Cost Considerations
Maintenance intervals and system controls designed to support long-term operation.
High Capacity
16.1 kW diesel and 15.1 kW standby at 0°/30°C.
Quiet Operation
62 dBA in HS and 60 dBA in VLS.
*Compared to Vector 1550.
01
Variable SpeedThe compressor modulates speed instead of operating in ON/OFF cycles.02
On-Demand PowerPower is delivered only when needed, avoiding unnecessary peaks.03
Temperature ControlTemperature is maintained throughout the journey.04
Energy ManagementEnergy use is managed based on cooling demand, particularly during steady-state operation. |
✓ All-electric architecture
✓ Direct power generation through an integrated generator
✓ Quiet operation
✓ Simplified system architecture
|
-6 dB*
Noise emission reductionResulting in a perceived sound reduction of more than 50%65 dB
Sound pressure at high speedSuitable for noise-sensitive urban areas and night-time deliveriesConsistent Operation
Reliable operation throughout the journey
|

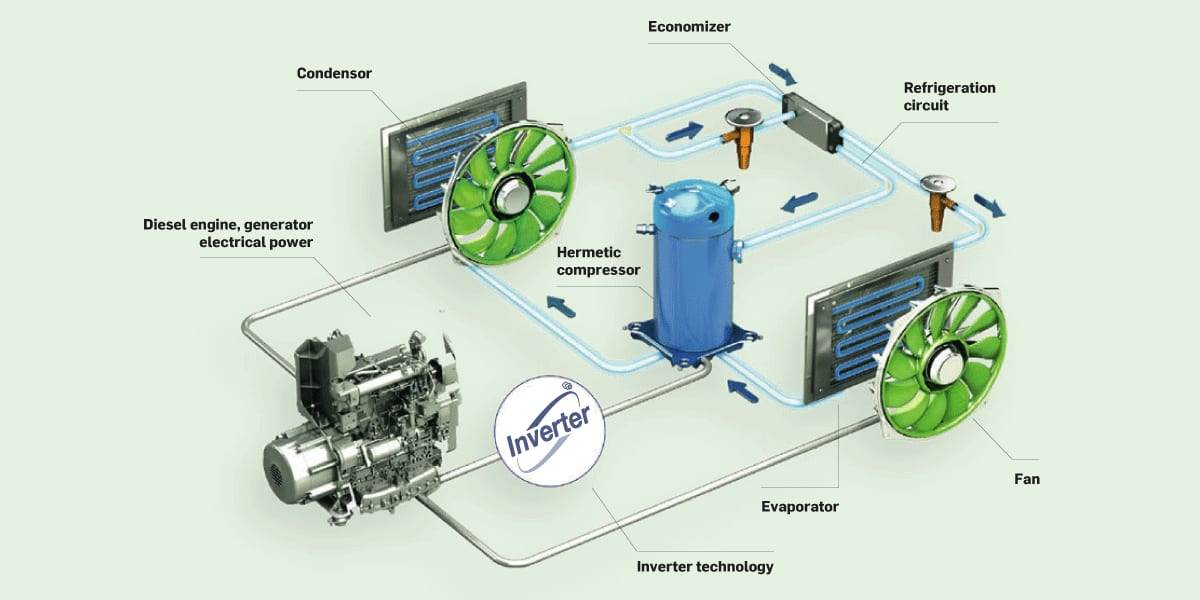

Variable Speed Compressor
The Vector HE 17 is equipped with inverter technology that allows the compressor speed to increase or decrease according to cooling load. This compressor, coupled with the lower diesel engine operating speeds, allows the Vector HE 17 unit to adjust cooling output based on operating conditions while supporting temperature management and sound reduction.

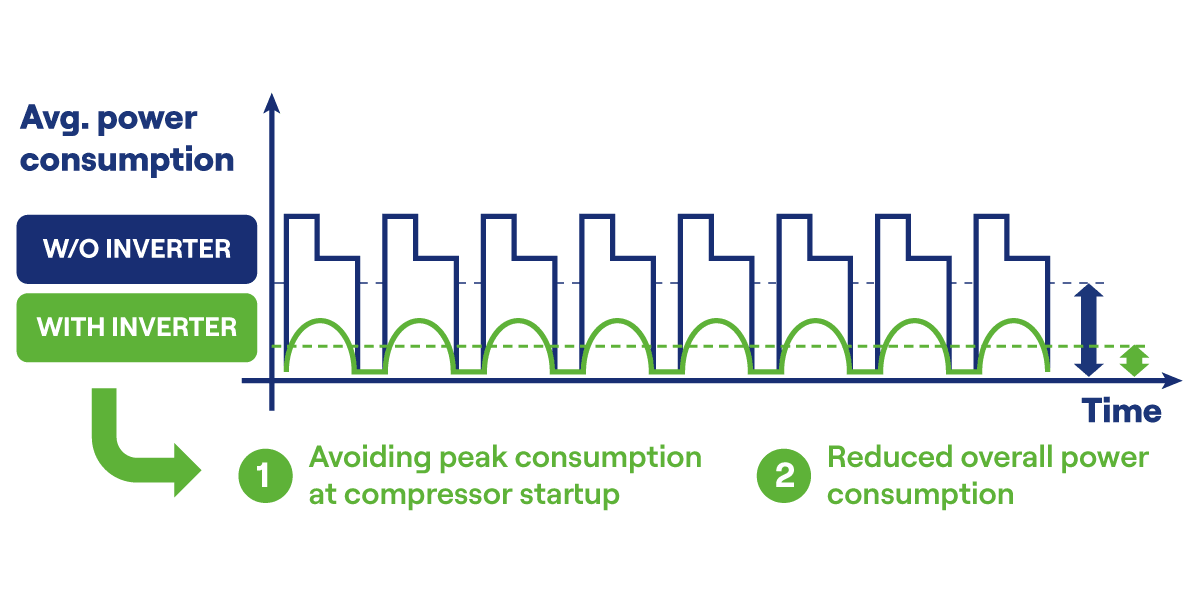

Inverter Technology
Inverter technology allows control of compressor speed and delivery of the power needed by the refrigeration unit. With this technology, temperature is adjusted by changing compressor speed without turning the compressor on and off, allowing the system to respond to cooling-capacity requirements and power demand while reducing unnecessary compressor restarts.
|
Data-Driven Control with Lynx Fleet
Connected Technology
Lynx Fleet provides visibility and decision support by transforming unit data into actionable insights, helping you monitor fleet operations and support reporting needs across your fleet.
Operational Visibility in Real Time
Access key operational data to support daily monitoring and decision-making.
Performance Insights
Track performance trends to support operational monitoring.
Centralized Fleet Oversight
Manage connected units from a single platform with consistent oversight.
Reporting Support and Data Export
Export operational data for reporting and analysis workflows.
Talk to Our Trailer Refrigeration Specialists
Explore Solutions for Your Fleet
Carrier Transicold has been an industry leader for more than 50 years, providing customers worldwide with advanced, energy-efficient and environmentally sustainable refrigeration systems. Let us help you find the right mix of technologies and services for your routes, vehicles, and sustainability goals.
View more about the Vector HE 17 Trailer Refrigeration Unit
Vector HE 17 Specifications
| Model | Cooling Capacity (W) | Heating Capacity (W) | Airflow (m3/hr) | Dimensions
(H x W x D) |
Weight (kg) | Sound Pressure (dB[A]) | |||
| Road 0°C/+30°C | Road -20°C/+30°C | Standby 0°C/+30°C | Standby -20°C/+30°C | +12°C/-20°C | |||||
| Vector HE 17 | 16120 | 8100 | 15140 | 8550 | 8000 | 5550 | 2227 x 2050 x 430 mm | 720 | 65 |
