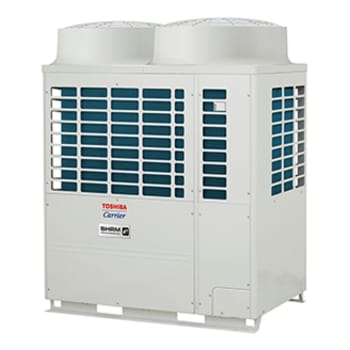

Series
T8P

SMMS-e VRF Cooling only
With R410A Refrigerant

Cooling capacity: 22.4~168.0 kW

Features
Physical Data

Features

Upgraded inverter box with addition protection to prevent small animals from entering and interfering with the electronic components
Single unit capacity expanded (up to 22HP)
Compact module size minimizes weight-related restrictions and allows for quicker installation
System capacity expanded, possible to connect up to60HP in one system, with up to 64 connectable indoor units
Increase more flexibility on installation with less foot print
Read and write data directly on smart phone device. Testing and commissioning can be also done without opening the cabinet.
Piping design flexibility with slimmer pipe size
Backup operation in case of a compressor failure

Physical Data

Capacity	Model (MMY-)	Cooling Capacity (kW)	Combination Model (MMY-)	Dimensions HxWxD (mm)
8HP	MAP0806T8P	22.4		1800 x 990 x 780
10HP	MAP1006T8P	28		1800 x 990 x 780
12HP	MAP1206T8P	33.5		1800 x 990 x 780
14HP	MAP14B6T8P	40		1800 x 990 x 780
16HP	MAP1606T8P	45		1800 x 1210 x 780
18HP	MAP18B6T8P	50.4		1800 x 1210 x 780
20HP	MAP2006T8P	56		1800 x 1600 x 780
22HP	MAP2206T8P	61.5		1800 x 1600 x 780
24HP	AP2416T8P	67	MAP1206T8P	1800 x 990 x 780
24HP	AP2416T8P	67	MAP1206T8P	1800 x 990 x 780
26HP	AP2616T8P	73.5	MAP1406T8P	1800 x 990 x 780
26HP	AP2616T8P	73.5	MAP1206T8P	1800 x 990 x 780
28HP	AP2816T8P	80	MAP14B6T8P	1800 x 990 x 780
28HP	AP2816T8P	80	MAP14B6T8P	1800 x 990 x 780
30HP	AP3016T8P	85	MAP1606T8P	1800 x 1210 x 780
30HP	AP3016T8P	85	MAP14B6T8P	1800 x 990 x 780
32HP	AP3216T8P	90	MAP1606T8P	1800 x 1210 x 780
32HP	AP3216T8P	90	MAP1606T8P	1800 x 1210 x 780
34HP	AP3416T8P	95.4	MAP18B6T8P	1800 x 1210 x 780
34HP	AP3416T8P	95.4	MAP1606T8P	1800 x 1210 x 780
36HP	AP3616T8P	100.8	MAP18B6T8P	1800 x 1210 x 780
36HP	AP3616T8P	100.8	MAP18B6T8P	1800 x 1210 x 780
38HP	AP3816T8P	106.5	MAP2206T8P	1800 x 1600 x 780
38HP	AP3816T8P	106.5	MAP1606T8P	1800 x 1210 x 780
40HP	AP4016T8P	111.9	MAP2206T8P	1800 x 1600 x 780
40HP	AP4016T8P	111.9	MAP18B6T8P	1800 x 1210 x 780
42HP	AP4216T8P	117.5	MAP2206T8P	1800 x 1600 x 780
42HP	AP4216T8P	117.5	MAP2006T8P	1800 x 1600 x 780
44HP	AP4416T8P	123	MAP2206T8P	1800 x 1600 x 780
44HP	AP4416T8P	123	MAP2206T8P	1800 x 1600 x 780
46HP	AP4616T8P	130	MAP1606T8P	1800 x 1210 x 780
			MAP1606T8P	1800 x 1210 x 780
			MAP14B6T8P	1800 x 990 x 780
48HP	AP4816T8P	135	MAP1606T8P	1800 x 1210 x 780
			MAP1606T8P	1800 x 1210 x 780
			MAP1606T8P	1800 x 1210 x 780
50HP	AP5016T8P	140.4	MAP18B6T8P	1800 x 1210 x 780
			MAP1606T8P	1800 x 1210 x 780
			MAP1606T8P	1800 x 1210 x 780
52HP	AP5216T8P	145.8	MAP18B6T8P	1800 x 1210 x 780
			MAP18B6T8P	1800 x 1210 x 780
			MAP1606T8P	1800 x 1210 x 780
54HP	AP5416T8P	151.2	MAP18B6T8P	1800 x 1210 x 780
			MAP18B6T8P	1800 x 1210 x 780
			MAP18B6T8P	1800 x 1210 x 780
56HP	AP5616T8P	156.8	MAP2006T8P	1800 x 1600 x 780
			MAP18B6T8P	1800 x 1210 x 780
			MAP18B6T8P	1800 x 1210 x 780
58HP	AP5816T8P	162.3	MAP2206T8P	1800 x 1600 x 780
			MAP18B6T8P	1800 x 1210 x 780
			MAP18B6T8P	1800 x 1210 x 780
60HP	AP6016T8P	168	MAP2206T8P	1800 x 1600 x 780
			MAP2206T8P	1800 x 1600 x 780
			MAP1606T8P	1800 x 1210 x 780
14HP	MAP1406T8P	45		1800 x 990 x 780
18HP	MAP1806T8P	50.4		1800 x 1210 x 780
20HP	MAP2026T8P	56	MAP1006T8P	1800 x 990 x 780
20HP	MAP2026T8P	56	MAP1006T8P	1800 x 990 x 780
22HP	MAP2226T8P	61.5	MAP1206T8P	1800 x 990 x 780
22HP	MAP2226T8P	61.5	MAP1006T8P	1800 x 990 x 780
24HP	AP2426T8P	67	MAP1206T8P	1800 x 990 x 780
24HP	AP2426T8P	67	MAP1206T8P	1800 x 990 x 780
26HP	AP2626T8P	73.5	MAP1406T8P	1800 x 990 x 780
26HP	AP2626T8P	73.5	MAP1206T8P	1800 x 990 x 780
28HP	AP2826T8P	80	MAP1406T8P	1800 x 990 x 780
28HP	AP2826T8P	80	MAP1406T8P	1800 x 990 x 780
30HP	AP3026T8P	85	MAP1606T8P	1800 x 1210 x 780
30HP	AP3026T8P	85	MAP1406T8P	1800 x 990 x 780
32HP	AP3226T8P	90	MAP1606T8P	1800 x 1210 x 780
32HP	AP3226T8P	90	MAP1606T8P	1800 x 1210 x 780
34HP	AP3426T8P	95.4	MAP1806T8P	1800 x 1210 x 780
34HP	AP3426T8P	95.4	MAP1606T8P	1800 x 1210 x 780
36HP	AP3626T8P	100.5	MAP1206T8P	1800 x 990 x 780
			MAP1206T8P	1800 x 990 x 780
			MAP1206T8P	1800 x 990 x 780
38HP	AP3826T8P	106.5	MAP1406T8P	1800 x 990 x 780
			MAP1206T8P	1800 x 990 x 780
			MAP1206T8P	1800 x 990 x 780
40HP	AP4026T8P	111.9	MAP1406T8P	1800 x 990 x 780
			MAP1406T8P	1800 x 990 x 780
			MAP1206T8P	1800 x 990 x 780
42HP	AP4226T8P	117.5	MAP1406T8P	1800 x 990 x 780
			MAP1406T8P	1800 x 990 x 780
			MAP1406T8P	1800 x 990 x 780
44HP	AP4426T8P	123	MAP1606T8P	1800 x 1210 x 780
			MAP1406T8P	1800 x 990 x 780
			MAP1406T8P	1800 x 990 x 780
46HP	AP4626T8P	130	MAP1606T8P	1800 x 1210 x 780
			MAP1606T8P	1800 x 1210 x 780
			MAP1406T8P	1800 x 990 x 780
48HP	AP4826T8P	135	MAP1606T8P	1800 x 1210 x 780
			MAP1606T8P	1800 x 1210 x 780
			MAP1606T8P	1800 x 1210 x 780
52HP	AP5226T8P	145.8	MAP2006T8P	1800 x 1600 x 780
			MAP1606T8P	1800 x 1210 x 780
			MAP1606T8P	1800 x 1210 x 780
54HP	AP5426T8P	151.2	MAP2006T8P	1800 x 1600 x 780
			MAP2006T8P	1800 x 1600 x 780
			MAP1406T8P	1800 x 990 x 780
56HP	AP5626T8P	156.8	MAP2006T8P	1800 x 1600 x 780
			MAP2006T8P	1800 x 1600 x 780
			MAP1606T8P	1800 x 1210 x 780
58HP	AP5826T8P	162.3	MAP2206T8P	1800 x 1600 x 780
			MAP2006T8P	1800 x 1600 x 780
			MAP1606T8P	1800 x 1210 x 780
60HP	AP6026T8P	168	MAP2206T8P	1800 x 1600 x 780
			MAP2206T8P	1800 x 1600 x 780
			MAP1606T8P	1800 x 1210 x 780
