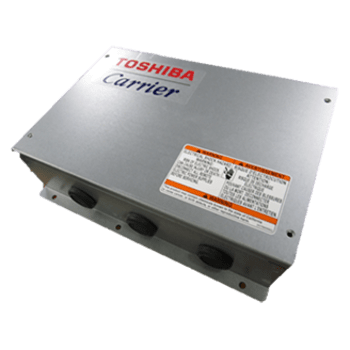

ERV Control Interface
TCB-IFVN1UL

Toshiba Carrier VRF

ERV Control Interface

The ERV Control Interface is used to connect and operate third-party Energy Recovery Ventilation. The third-party ERV ON/OFF and fan speed is controlled using the Toshiba Carrier Wired Controller, which is connected to the Toshiba Carrier VRF system.

Controls Features

  • Connect and operate third-party Energy Recovery Ventilation (ERV)
  • Digital input/output
  • Non-polarity connection between interface and Wired Controller
  • Power Supply: 208/230V-1-60Hz
  • Power Consumption: 7W
  • Operating Temperature/Humidity: 32°F to 104°F / 10 to 90% RH
