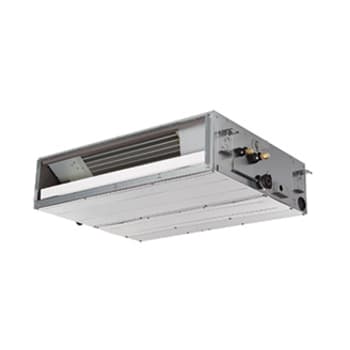

Slim Duct
MMDP

Toshiba Carrier VRF

Slim Duct Indoor Unit

7,500 to 18,000 Btuh
0.6 to 1.5 Tons

The Toshiba Carrier Slim Duct indoor units are ideal for soffitt or low plenum height applications.

Compatible Outdoor Units

The MMDP fan coil is matched with the MMYF heat recovery unit or the MMYH heat pump.

VRF_Indoor_Badges

Product Features

  • Available in 5 different capacities
  • 208-230V/1/60Hz voltage
  • Less than 0.2" of external static
  • DC fan motor
  • Three fan speeds - High, Medium, Low
  • Built in condensate drain pump
  • OA knock out
  • Optional auxiliary fresh air kit

Reliability Features

  • Finned tube heat exchanger
  • Suitable for R-410a refrigerant
  • All equipment wiring complies with NEC requirements
  • Unit constructed in accordance with ETL and ETL, Canada standards

Installation Features

  • Factory provided controls
  • Single point electric connections

ALL PARTS LIMITED WARRANTY

Company provides a Five-Year Limited Warranty on all parts and components, except refrigerant, air filters and filter driers which are not included in any part of the limited warranty.

SEVEN YEAR LIMITED WARRANTY ON COMPRESSOR ONLY

Company provides a Seven-Year Parts Only Limited Warranty on the Compressor.
