Supra^® Truck Refrigeration Units

Supra Range Performance for refrigerated Trucks

Developed for distribution environments with multiple door openings, you can rely on the high performance of the Supra range to meet the needs of your challenging operation.

Carrier Supra Truck Refrigeration Unit, schematic illustration

Solutions for all your distribution needs

Superior Performance

The Supra range achieves superior pulldown and accurate temperature control at all set points, supported by a large range of evaporators with electric fans providing constant airflow independent of engine speed.

High Capacity

Extended with three high capacity models, the Supra range is available up to 12,000 Watts. Increased airflow allows for quick temperature recovery and improved air management. The use of a 7 mm condenser and smaller compressor lower fuel consumption for improved efficiency.

Robust Design

Strong composite materials and components (easy start) extend unit lifetime, reduce downtime, and optimize maintenance time with easy accessibility.

Integrating in Your Working Environment

The Supra range offers extreme flexibility to ensure you have the right unit for your operation. Model available in multi-temperature options in nosemount, undermount, silent and extreme climate versions.

Learn more about Supra Truck Refrigeration Units

Contact your local dealer

View the full Supra series

Supra 550

Temperature Type: Mono Temperature

Refrigeration Capacity
(System net cooling capacity under A.T.P. Conditions at 30° C ambient)

Capacity on engine power 0°C	5455 W
Capacity on engine power -20°C	3165 W
Capacity on electrical standby 0°C	4670 W
Capacity on electrical standby -20°C	2770 W

Heating Capacity

Diesel High speed 18°C/-18°C	1940 W
Standby 18°C/-18°C	1205 W

Air Flow
(High speed engine operation)

AMCA 21085

2150 m³/hr

Weight
(Including battery)

S version (Standard)	391 kg
T version (Low noise)	394 kg

Engine

Model	CT2-29TV
Displacement	479 cm³
N° of cylinders	2
Maintenance Interval	500/750 hrs

Compressor

Model	05K2
Displacement	200 cm³
N° of cylinders	2

Electrical Standby Motor

Voltage / Phase / Frequency	230/400/3/50 Hz 240/460/3/60 Hz
Rating	3.6 kW

Refrigerant

Type	R-404A
Charge	4 kg

Sound Pressure
Standard / Low Noise

High speed	68 dBA / 66.1 dBA
Low Speed	63.6 dBA / 62.4 dBA
Standby	59.8 dBA / 58.8 dBA

Dimensions

Unit (L x W x H)	825 x 1823 x 555 mm
Body opening (L x H)	1245 x 310 mm

Supra 750

Temperature Type: Mono Temperature

Refrigeration Capacity
(System net cooling capacity under A.T.P. Conditions at 30° C ambient)

Diesel – High Speed 0°C/30°C	6780 W
Diesel - High Speed -20°C/30°C	3750 W
Standby 400V/3/50 Hz 0°C/30°C	5920 W
Standby 400V/3/50 Hz -20°C/30°C	3120 W

Heating Capacity

Diesel	2170 W
Standby 400V/3/50 Hz	1210 W

Air Flow
(High speed engine operation)

Diesel	2140 m³/hr
400V/3/50 Hz	2140 m³/hr

ATP Compliant
(Including battery)

M1074

Weight

429 kg

Dimensions (mm)

H x W x D

629 x 1823 x 888

Box Size Recommendation

0°C/30°C	54 m³
0°C/40°C	39 m³
-20°C/+30°C	38 m³
-20°C/+40°C	31 m³

Sound Emissions

Sound Power Lwa	97 dB
Diesel - High Speed Pressure	68.2 dB
Diesel - Low Speed Pressure	66 dB
Standby - 400V/3/50 Hz Pressure	59.7 dB

Components

Engine - Displacement	719 cc
Engine - N° of cylinders	3
Motor - Voltage	400V/3/50 Hz
Motor - Power	3.6 kW
Compressor – Techno	Reciprocating
Compressor - Model	O5K2
Controls	Easycold

Refrigerant

Type	R-452A
Charge	5.2 kg

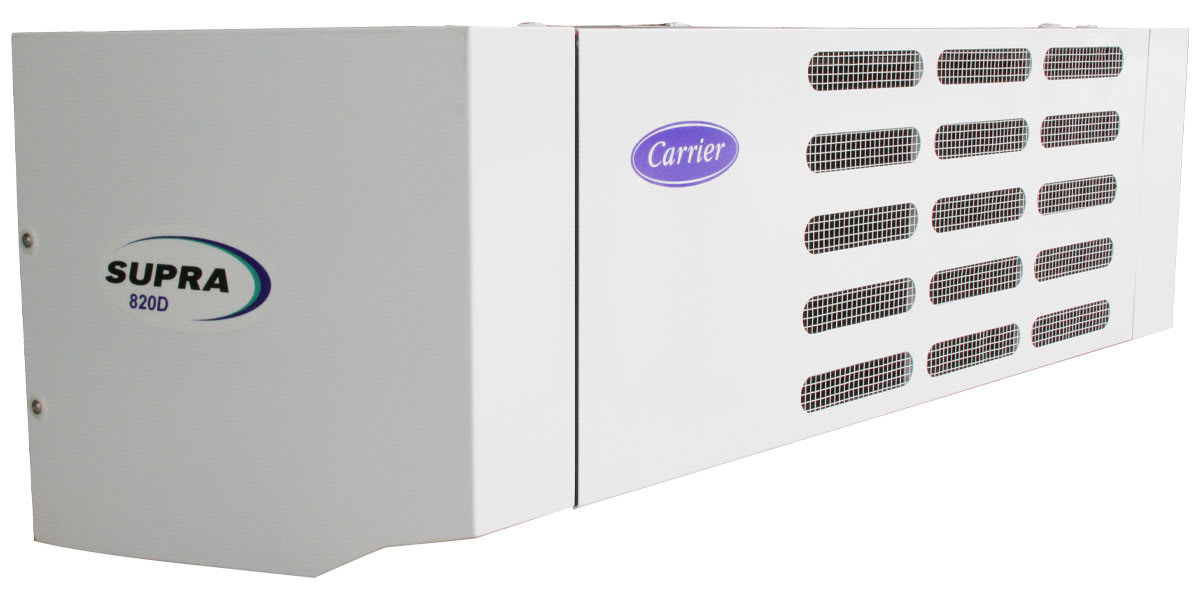

Supra 820D

Supra 820D Features and Benefits

Compact bottom-mounted standalone chiller that combines high cooling capacity with robust reliability
Highly resistant to moisture, contamination and dust
Quiet operation
Ultra-thin evaporator

Temperature Type: Mono Temperature

Refrigeration Capacity
(System net cooling capacity under A.T.P. Conditions at 30°C ambient)

Capacity on engine power 0°C	7400 W
Capacity on engine power -20°C	4100 W
Capacity on electrical standby 0°C	6700 W
Capacity on electrical standby -20°C	3600 W

Heating Capacity

Diesel High speed 18°C/-18°C	2170 W
Standby 18°C/-18°C	1205 W

Air Flow
(High speed engine operation)

AMCA 21085

2500 m³/hr

Weight
(Including battery)

S model	415 kg
Evaporator	58 kg

Engine

Model	CT3-44TV
Displacement	719 cm³
N° of cylinders	3
Maintenance Interval	750 hrs

Compressor

Model	05K4
Displacement	400 cm³
N° of cylinders	4

Electrical Standby Motor

Voltage / Phase / Frequency	400/3/50 Hz
Rating	4.8 kW

Refrigerant

Type	R-404A
Charge	6.8 kg

Dimensions

Unit (L x W x H)	1753 x 687 x 624 mm
Evaporator (L x W x H)	1225 x 722 x 301 mm

Supra 850

Temperature Type: Mono Temperature

Cooling Capacity

Diesel – High Speed 0°C/+30°C	7800 W
Diesel – High Speed -20°C/+30°C	4900 W
Standby – 400V/3/50 Hz 0°C/+30°C	6450 W
Standby – 400V/3/50 Hz -20°C/+30°C	4240 W

Heating Capacity

Diesel	3360 W
Standby – 400V/3/50 Hz	1770 W

Air Flow

Diesel

2500 m³/hr

ATP Compliant

M1022

Weight

461 kg

Dimensions

H x W x D

629 x 1823 x 888 mm

Box Size Recommendation

+0°C / +30°C	65 m³
+0°C / +40°C	46 m³
-20°C / +30°C	55 m³
-20°C / +40°C	43 m³

Sound Emission

Sound Power (Lwa)	98 dB
Diesel – High Speed	68.7 dB
Diesel – Low Speed	66.3 dB
Standby – 400V/3/50 Hz	59.7 dB

Components

Engine – Displacement	719 cc
Engine – Cylinders	3
Motor – Voltage	400V/3/50 Hz
Motor – Power	3.6 kW
Compressor – Techno	Reciprocrating
Compressor – Model	O5K4
Controls	Easycold

Refrigerant

Type	R452A
Charge	6.8 kg

Supra 1050

Temperature Type: Mono Temperature

Cooling Capacity

Diesel – High Speed 0°C/+30°C	9100 W
Diesel – High Speed -20°C/+30°C	5600 W
Standby – 400V/3/50 Hz 0°C/+30°C	7800 W
Standby – 400V/3/50 Hz -20°C/+30°C	5000 W

Heating Capacity

Diesel	3530 W
Standby – 400V/3/50 Hz	2530 W

Air Flow

Diesel

3350 m³/hr

ATP Compliant

M983

Weight

617 kg

Dimensions

H x W x D

699 x 1995 x 971 mm

Box Size Recommendation

+0°C / +30°C	77 m³
+0°C / +40°C	55 m³
-20°C / +30°C	65 m³
-20°C / +40°C	51 m³

Sound Emission

Sound Power (Lwa)	98 dB
Diesel – High Speed	69.6 dB
Diesel – Low Speed	67.2 dB
Standby – 400V/3/50 Hz	61.5 dB

Components

Engine – Displacement	1123 cc
Engine – Cylinders	3
Motor – Voltage	400V/3/50 Hz
Motor – Power	9 kW
Compressor – Techno	Reciprocrating
Compressor – Model	O5K4
Controls	Easycold

Refrigerant

Type	R452A
Charge	5.4 kg

Supra 1150

Temperature Type: Mono Temperature

Refrigeration Capacity
(System net cooling capacity under A.T.P. Conditions at 30°C ambient)

Capacity on engine power 0°C (W)	10500
Capacity on engine power -20°C (W)	6350
Capacity on electrical stand by 0°C (W)	8900
Capacity on electrical stand by -20°C (W)	5400

Heating Capacity

Diesel High speed 18°C/-18°C (W)	4720
Standby 18°C/-18°C (W)	2740

Airflow
(High speed engine operation)

(AMCA 21085) m³/hr

3350

Weight
(Including battery)

S version (Standard)

626 kg

Engine

Model	CT3-69TV
Displacement	1123 cm³
n° of cylinders	3
Maintenance Interval	1000 hrs

Compressor

Model	05K4
Displacement	400 cm³
n° of cylinders	4

Electrical Stand by Motor

Voltage / Phase / Frequency	230/400/3/50 Hz 240/460/3/60 Hz
Rating	9 kW

Refrigerant

Type	R-404A, R-452A
Charge	5,7 kg

Sound pressure

	Standard
High speed	69,2 dBA
Low speed	65,7 dBA
Standby	62,2 dBA

Unit

Body opening	L 1245 x H 350 mm
Dimensions	971 x 1995 x 684 mm

Supra 1250

Temperature Type: Mono Temperature

Refrigeration Capacity
(System net cooling capacity under A.T.P. Conditions at 30° C ambient)

Capacity on engine power 0°C	12050 W
Capacity on engine power -20°C	6990 W
Capacity on electrical stand by 0°C	9100 W
Capacity on electrical stand by -20°C	6300 W

Heating Capacity

Diesel High speed 18°C/-18°C	4720 W
Standby 18°C/-18°C	2740 W

Airflow
(High speed engine operation)

(AMCA 21085)

3350 m³/hr

Weight
(Including battery)

S version

636 kg

Engine

Model	CT3-69TV
Displacement	1123 cm³
n° of cylinders	3
Maintenance Interval	1000 hrs

Compressor

Model	05G
Displacement	600 cm³
n° of cylinders	6

Electrical Stand by Motor

Voltage / Phase / Frequency	230/400/3/50 Hz 240/460/3/60 Hz
Rating	9 kW

Refrigerant

Type	R-404A, R-452A
Charge	6 kg

Sound pressure
(Standard)

High speed	69.2 dBA
Low speed	65.7 dBA
Standby	62.2 dBA

Unit

Body opening	L 1245 x H 350 mm
Dimensions	971 x 1995 x 684 mm
