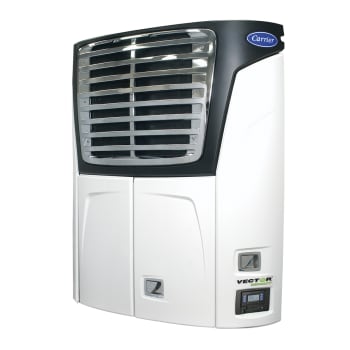

Vector™ 8800MT Trailer Refrigeration Unit

All-Electric CARB Compliant Refrigeration System Offering Configuration Versatility and Premium Performance.


Carrier Vector 8800MT logo

Features and Benefits:

  • E-Drive™ technology. Uses a new smart engine to drive the generator that powers its all-electric, multi-zone refrigeration system, resulting in better fuel economy and performance.
  • Enhanced compliance. Surpasses EPA Tier 4, and lifetime compliant with California Air Resources Board (CARB) emissions requirements without the need for future exhaust systems.
  • Ultra-high efficiency. Delivers high airflow and fast pulldown using 10% less fuel than its standard counterpart, thanks to its three-speed engine with common-rail fuel injection.
  • Configuration versatility. Four smart remote evaporator choices provide flexibility in configuring two- and three-compartment trailers.

Performance Specifications

Condenser Dimensions
76.4" x 85.7" x 22.8"
(1,940 x 2,176 x 579 mm)

Evaporator Dimensions
66.3" x 45.2" x 8.2"
(1,684 x 1,149 x 280 mm)

Body Opening
66.8" x 46.0"
(1,696 x 1,168 mm)

Approximate Weight
1,820 lb. (825 kg) including electric standby
Remote 50-gallon aluminum fuel tank with mounting brackets: 65 lb. (29 kg)
Battery: 50 lb. (23 kg)

Cooling Capacity
Ambient at 100°F (38°C)

Evaporator Return Air Temp. Diesel Operation
  BTU/hr Watts
35°F ( 2°C) 58,000 16,998
0°F (-18°C) 33,500 9,818
-20°F (-29°C) 22,000 6,594

Evaporator Airflow
Applied system performance:
3,100 cfm (5,270 m3/hr)

Learn more about Carrier X4 and Vector CARB Trailer Refrigeration Units
