Airstream™ 42C
Airstream™
42C
Horizontal Fan Coils
340 to 2,039 m³/h
200 to 1,200 cfm
42CA - Furred-in
42CE - Furred-in with plenum

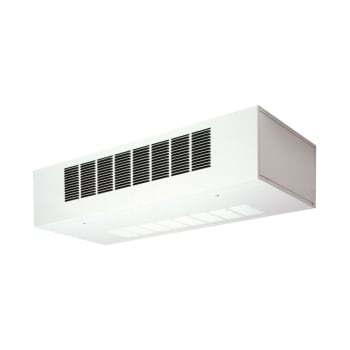

42CG - Cabinet

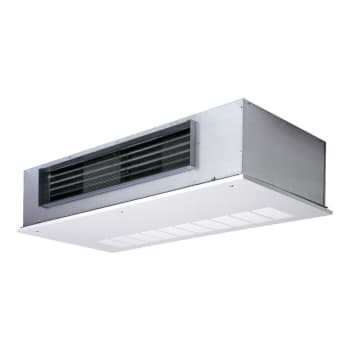

42CK - Cabinet, ducted
Ideal for any passenger-occupied space, 42 series fan coils combine heating and cooling performance with easy, low-cost installation. The 42C units are designed to occupy a minimum space, using furred-in, painted cabinet, or telescoping bottom panel models.
Performance Features
- Airflow capacities from 200 to 1200 cfm.
- 2-pipe or 4-pipe system combinations.
- Economical, 3-speed fans deliver the right amount of conditioned air for comfort needs at any load.
- Optional electronically commutated motors deliver peak operating efficiency.
- Sound-absorbing insulation is used to line the cabinet.
- Certified performance in accordance with AHRI Standard 440.
Reliability Features
- Coils are factory leak tested at 300 psig air pressure with coil submerged in water.
- All equipment wiring complies with NEC requirements.
- Optional electric heaters are fully sheathed for marine applications.
- Unit casing meets UL 181 and NFPA 90A standards.
Maintenance Features
- Cleanable or throwaway filters available.
- Removable panels make access to components and connections easy.
- Label information adhered to each unit includes model, size, coil information, electrical information, and tagging data.
- Units include stainless steel marine double drain pan for positive drainage during pitch and roll.
Installation Features
- Piping, drain, and wiring connections are readily accessible.
- Factory-installed controls.
- Single point electrical connection.
- Pre-drilled mounting holes and slots.
- Compact unit casing accommodates installation in reduced ceiling plenum space.
- Valve packages available.
Standard Warranty
- One-year parts.
Factory-Installed Options
- 3-speed switches.
- Line voltage thermostats.
- 24V Carrier Debonair® programmable or non-programmable thermostats.
- Product Integrated direct digital electronic controls (i-Vu® control system using BACnet® protocol).
- Chilled water or direct expansion cooling coils.
- Hot water or steam heating coils.
- Total or auxiliary electric heat (fully sheathed).
- Service switches.
- Custom colors.
- Permanent or throwaway filters.
- Automatic air vent and drain on water coils.
- Double deflection discharge grilles.
- Tell-tale drains and stainless steel drain pans.
- Condensate overflow switch.
- Dual density fiberglass, foil faced fiberglass or closed cell insulation.
- PSC, High Static PSC, or ECM motors.
- Seismic certified construction (OSHPD & IBC).
Field-Installed Accessories
- Remote mounted thermostats.
- Valve packages factory wired and assembled for field mounting.
- Drip lips for collection of condensate under valve packages.
Physical Data (Sizes 02-06)
| Size | 02 | 03 | 04 | 06 |
|---|---|---|---|---|
| Nominal airflow cfm | 200 | 300 | 400 | 600 |
| Shipping weight (lb.)* | ||||
| 42CA | 36 | 39 | 49 | 59 |
| 42CE | 55 | 60 | 70 | 82 |
| 42CG | 98 | 118 | 126 | 168 |
| 42CK | 115 | 120 | 135 | 150 |
| Coil water weight (approx. lb per row of coil) | 0.7 | 0.8 | 1.0 | 1.4 |
| Coils (fins per in.) | 10 | 10 | 10 | 10 |
| Coil face area (sq. ft.) | 0.8 | 1.1 | 1.4 | 1.9 |
| Motor (qty) 42C only | 1 | 1 | 1 | 1 |
| Blower (qty) | 1 | 1 | 2 | 2 |
| Filters nominal size (in.) (1-inch thick) | ||||
| 42CA | N/A | N/A | N/A | N/A |
| 42CE† | 10 x 18 | 10 x 22 | 10 x 28 | 10 x 33 |
| 42CG (bottom return) | 10 x 23½ | 10 x 28 | 10 x 32½ | 10 x 37 |
| 42CG (rear return) | 8 x 23½ | 8 x 28 | 8 x 32½ | 8 x 37 |
| 42CK (bottom return) | 10 x 28 | 10 x 28 | 10 x 33 | 10 x 45 |
| 42CK (rear return) | 7 x 21 | 7 x 21 | 7 x 27 | 7 x 38 |
| Qty | 1 | 1 | 1 | 1 |
| Supply duct collar | 1-in. | 1-in. | 1-in. | 1-in. |
| Piping connections (sweat) (in.) | ||||
| Coil outlet and inlet | ⅝OD | ⅝OD | ⅝OD | ⅝OD |
| Drain connection | ⅞OD | ⅞OD | ⅞OD | ⅞OD |
| Tell-tale drain | ⅝OD | ⅝OD | ⅝OD | ⅝OD |
Physical Data (Sizes 08-12)
| Size | 08 | 10 | 12 |
|---|---|---|---|
| Nominal airflow cfm | 800 | 1000 | 1200 |
| Shipping weight (lb.)* | |||
| 42CA | 64 | 95 | 107 |
| 42CE | 95 | 135 | 157 |
| 42CG | 176 | 215 | 245 |
| 42CK | 155 | 227 | 241 |
| Coil water weight (approx. lb per row of coil) | 1.7 | 2.3 | 2.7 |
| Coils (fins per in.) | 10 | 10 | 10 |
| Coil face area (sq. ft.) | 2.3 | 3.2 | 3.7 |
| Motor (qty) 42C only | 1 | 2 | 2 |
| Blower (qty) | 2 | 4 | 4 |
| Filters nominal size (in.) (1-inch thick) | |||
| 42CA | N/A | N/A | N/A |
| 42CE† | 10 x 40 | 10 x 54 | 10 x 62 |
| 42CG (bottom return) | 10 x 41 | 10 x 54½ | 10 x 63 |
| 42CG (rear return) | 8 x 41 | 8 x 54½ | 8 x 63 |
| 42CK (bottom return) | 10 x 45 | 10 x 62 | 10 x 62 |
| 42CK (rear return) | 7 x 38 | 7 x 52 | 7 x 52 |
| Qty | 1 | 1 | 1 |
| Supply duct collar | 1-in. | 1-in. | 1-in. |
| Piping conn. (sweat) (in.) | |||
| Coil outlet and inlet | ⅝OD | ⅝OD | ⅝OD |
| Drain connection | ⅞OD | ⅞OD | ⅞OD |
| Tell-tale drain | ⅝OD | ⅝OD | ⅝OD |
*Calculate operating weight of unit: shipping weight + coil water weight x number of coil rows.
†Filter size if located in return-air plenum.
Performance Features
- Airflow capacities from 200 to 1200 cfm.
- 2-pipe or 4-pipe system combinations.
- Economical, 3-speed fans deliver the right amount of conditioned air for comfort needs at any load.
- Optional electronically commutated motors deliver peak operating efficiency.
- Sound-absorbing insulation is used to line the cabinet.
- Certified performance in accordance with AHRI Standard 440.
Reliability Features
- Coils are factory leak tested at 300 psig air pressure with coil submerged in water.
- All equipment wiring complies with NEC requirements.
- Optional electric heaters are fully sheathed for marine applications.
- Unit casing meets UL 181 and NFPA 90A standards.
Maintenance Features
- Cleanable or throwaway filters available.
- Removable panels make access to components and connections easy.
- Label information adhered to each unit includes model, size, coil information, electrical information, and tagging data.
- Units include stainless steel marine double drain pan for positive drainage during pitch and roll.
Installation Features
- Piping, drain, and wiring connections are readily accessible.
- Factory-installed controls.
- Single point electrical connection.
- Pre-drilled mounting holes and slots.
- Compact unit casing accommodates installation in reduced ceiling plenum space.
- Valve packages available.
Standard Warranty
- One-year parts.
Factory-Installed Options
- 3-speed switches.
- Line voltage thermostats.
- 24V Carrier Debonair® programmable or non-programmable thermostats.
- Product Integrated direct digital electronic controls (i-Vu® control system using BACnet® protocol).
- Chilled water or direct expansion cooling coils.
- Hot water or steam heating coils.
- Total or auxiliary electric heat (fully sheathed).
- Service switches.
- Custom colors.
- Permanent or throwaway filters.
- Automatic air vent and drain on water coils.
- Double deflection discharge grilles.
- Tell-tale drains and stainless steel drain pans.
- Condensate overflow switch.
- Dual density fiberglass, foil faced fiberglass or closed cell insulation.
- PSC, High Static PSC, or ECM motors.
- Seismic certified construction (OSHPD & IBC).
Field-Installed Accessories
- Remote mounted thermostats.
- Valve packages factory wired and assembled for field mounting.
- Drip lips for collection of condensate under valve packages.
Physical Data (Sizes 02-06)
| Size | 02 | 03 | 04 | 06 |
|---|---|---|---|---|
| Nominal airflow cfm | 200 | 300 | 400 | 600 |
| Shipping weight (lb.)* | ||||
| 42CA | 36 | 39 | 49 | 59 |
| 42CE | 55 | 60 | 70 | 82 |
| 42CG | 98 | 118 | 126 | 168 |
| 42CK | 115 | 120 | 135 | 150 |
| Coil water weight (approx. lb per row of coil) | 0.7 | 0.8 | 1.0 | 1.4 |
| Coils (fins per in.) | 10 | 10 | 10 | 10 |
| Coil face area (sq. ft.) | 0.8 | 1.1 | 1.4 | 1.9 |
| Motor (qty) 42C only | 1 | 1 | 1 | 1 |
| Blower (qty) | 1 | 1 | 2 | 2 |
| Filters nominal size (in.) (1-inch thick) | ||||
| 42CA | N/A | N/A | N/A | N/A |
| 42CE† | 10 x 18 | 10 x 22 | 10 x 28 | 10 x 33 |
| 42CG (bottom return) | 10 x 23½ | 10 x 28 | 10 x 32½ | 10 x 37 |
| 42CG (rear return) | 8 x 23½ | 8 x 28 | 8 x 32½ | 8 x 37 |
| 42CK (bottom return) | 10 x 28 | 10 x 28 | 10 x 33 | 10 x 45 |
| 42CK (rear return) | 7 x 21 | 7 x 21 | 7 x 27 | 7 x 38 |
| Qty | 1 | 1 | 1 | 1 |
| Supply duct collar | 1-in. | 1-in. | 1-in. | 1-in. |
| Piping connections (sweat) (in.) | ||||
| Coil outlet and inlet | ⅝OD | ⅝OD | ⅝OD | ⅝OD |
| Drain connection | ⅞OD | ⅞OD | ⅞OD | ⅞OD |
| Tell-tale drain | ⅝OD | ⅝OD | ⅝OD | ⅝OD |
Physical Data (Sizes 08-12)
| Size | 08 | 10 | 12 |
|---|---|---|---|
| Nominal airflow cfm | 800 | 1000 | 1200 |
| Shipping weight (lb.)* | |||
| 42CA | 64 | 95 | 107 |
| 42CE | 95 | 135 | 157 |
| 42CG | 176 | 215 | 245 |
| 42CK | 155 | 227 | 241 |
| Coil water weight (approx. lb per row of coil) | 1.7 | 2.3 | 2.7 |
| Coils (fins per in.) | 10 | 10 | 10 |
| Coil face area (sq. ft.) | 2.3 | 3.2 | 3.7 |
| Motor (qty) 42C only | 1 | 2 | 2 |
| Blower (qty) | 2 | 4 | 4 |
| Filters nominal size (in.) (1-inch thick) | |||
| 42CA | N/A | N/A | N/A |
| 42CE† | 10 x 40 | 10 x 54 | 10 x 62 |
| 42CG (bottom return) | 10 x 41 | 10 x 54½ | 10 x 63 |
| 42CG (rear return) | 8 x 41 | 8 x 54½ | 8 x 63 |
| 42CK (bottom return) | 10 x 45 | 10 x 62 | 10 x 62 |
| 42CK (rear return) | 7 x 38 | 7 x 52 | 7 x 52 |
| Qty | 1 | 1 | 1 |
| Supply duct collar | 1-in. | 1-in. | 1-in. |
| Piping conn. (sweat) (in.) | |||
| Coil outlet and inlet | ⅝OD | ⅝OD | ⅝OD |
| Drain connection | ⅞OD | ⅞OD | ⅞OD |
| Tell-tale drain | ⅝OD | ⅝OD | ⅝OD |
*Calculate operating weight of unit: shipping weight + coil water weight x number of coil rows.
†Filter size if located in return-air plenum.
