Carrier OptiClean Dual-Mode Air Scrubber & Negative Air Machine FN1SXF00500G
Carrier OptiClean™ Dual-Mode Air Scrubber & Negative Air Machine FN1SXF00500G

500 CFM

The Carrier OptiClean™ is an air sanitation equipment which rolls easily into any building like commercial facilities, schools, dental offices and hospitals to improve indoor air quality (IAQ). It can be operated in two modes:

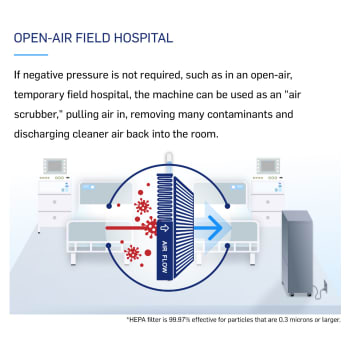

Air Scrubber —uses 99.97% efficient, long-life (~40,000 hour) HEPA filters to remove particles as small as 0.3 microns, then discharge cleaner air back into the room. Ideal as air sanitation equipment for a wide range of commercial applications, including K–12 classrooms , dental office exam rooms and open-air, temporary medical facilities.

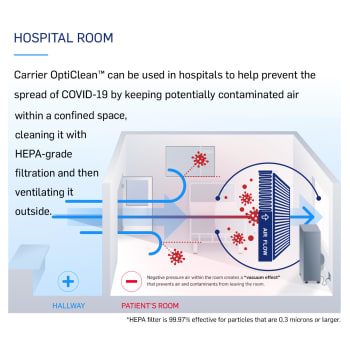

Negative Air Machine —may helps convert normal hospital rooms into negative-pressure airborne infectious isolation rooms (AIIR) by adding a vacuum effect to the HEPA filtration capability. Designed to ASHRAE Standard 170 for Ventilation of Health Care Facilities.

The units can be operate either vertically or horizontally in both modes.

Product Highlights

  • 99.97% efficient, long-life HEPA filter removes particles as small as 0.3 microns
  • Standard MERV 7 pre-filter
  • Nominal 500 CFM
  • Meets or exceeds the ASHRAE Standard 170: Ventilation of Health Care Facilities
  • HEPA filter rack and sealing design help to reduce air leakage
  • Vertical design for smaller footprint
  • Portable and adaptable to nearly any appropriately-sized location
  • Heavy-duty, lockable casters for easy transport
  • Red lighted indicator to alert user when filters are overloaded
  • Green on/off switch illuminates to verify when running
  • 3-second motor start delay
  • 3 meter long power cord with strain relief
  • Exhaust transition plate to standard 10-inch round (005 size)
  • Galvanized steel, pre-painted cabinet is fully insulated
  • 230V / 50 Hz / 1-Ph

Additional Product Details

Pre-Installed Filters
  • The Carrier OptiClean™ ships with two filters pre-installed for your convenience: a minimum MERV 7 pre-filter and a HEPA filter
    • The minimum MERV 7 pre-filter recommended replacement is 60-90 days
    • The long-life HEPA filter provides approximately 40,000 hours of operation, or four years, under normal operation and maintenance*

*Applies to negative air machine applications only. Filter life in air scrubber applications would be reduced.

Multi-Function Control Panel
  • On/Off Switch – A green on/off switch illuminates when the unit is on and operating
  • Filter Alert – A red light illuminates when it is time to check and/or replace one or both of the unit’s filters
  • Pressure Indicator – Compares room/ambient pressure versus internal pressure on the back side of the HEPA filter. Sets off the red indicator light when the filters are dirty
Additional Features
  • Locking casters and round duct transition assembly are shipped with every unit
  • Fan Motor Type: ECM 1/2HP
