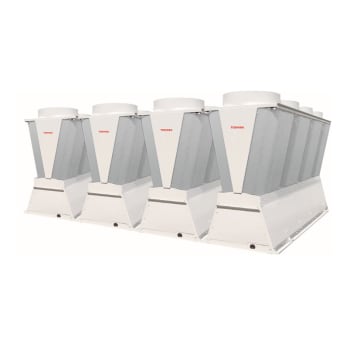

Universal Smart X

RUA-SP-S
Cooling Capacity Range (kW): 85 – 150

Air-Cooled Inverter Modular Chiller

  • Best in class efficiency of IPLV 7.1
  • Space-saving modules
  • Made in Japan

Line-Up

  • Model: 30HP, 40HP, 50HP
  • Type: Standard, High EER
  • Internal Inverter Pump, Pumpless

Highest operating efficiency in the industry

  • DC twin rotary compressor.
  • Highest level of IPLV7.1*1in the industry.

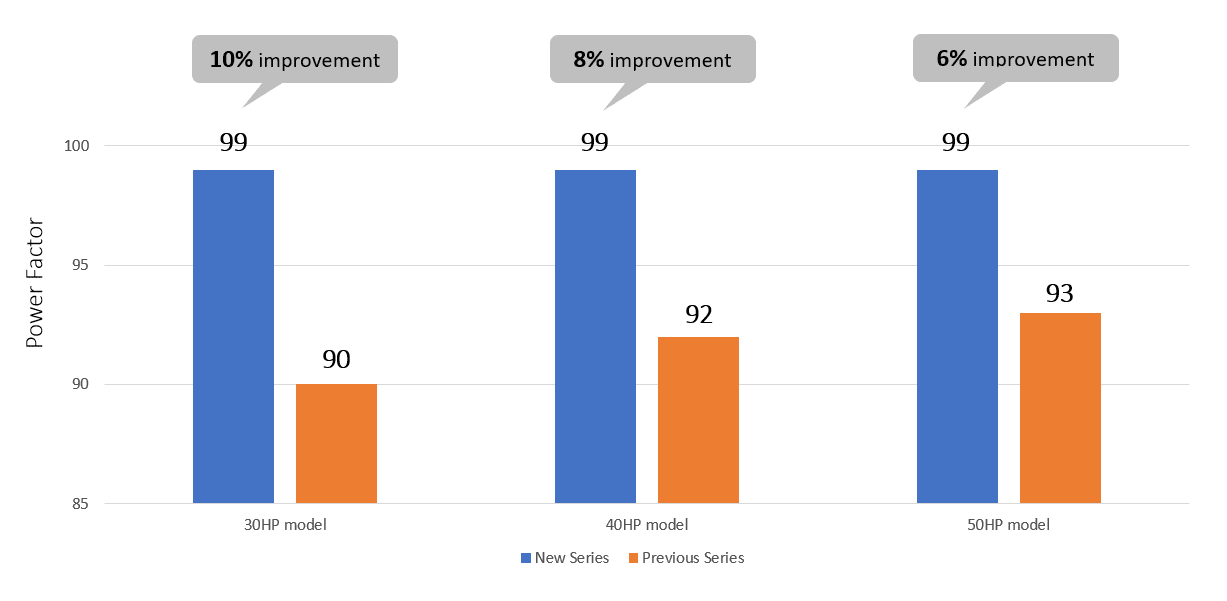

Achieved 99% Power Factor

  • Improvements to harmonic suppression function have brought power factor up to 99%.
Toshiba_USX_Graph

Highly-reliable module unit system

  • Each module has independent refrigerant cycle, providing risk-diversification.
  • Space-saving installation
    • Optimum air flow with advanced X frame. Easy installation in small spaces.
    • 58% lesser space required compared to conventional R134a chiller.
    • Easy replacement from a system using a chiller tower.

Flexible control of up to 6400 horsepower

  • Up to 123 Universal Smart X module units can be combined and operated together.
  • Superior System Management
    • Module controller, group controller and web monitor are now ready for users to manage and save energy.
    • You can monitor:
      • Simple manufacturing heat, power consumption
      • Operating capacity
      • Water supply temperature
      • Error history
  • Wi-Fi Data Analysis
    • Wireless LAN function comes standard in the module controller. Dedicated application collects data, like power consumption and inlet/outlet temperature, on a device, like a tablet, allowing for the study of optimal operations.

         *1 For high EER type 30hp module unit, internal pump power is not included.
         *2 Compared with the space needed to install a system for a 1200kW cooling load.Comparison of four RUA-SA30001H units and eight
              150kW module units.
