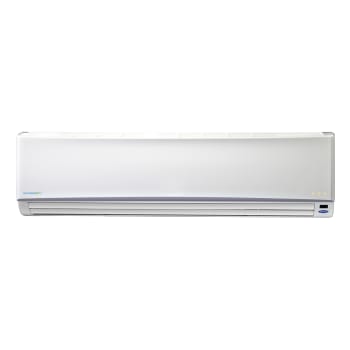

Xpression™ Pro

High Wall Ductless Split-System
Puron® (R-410A) Refrigerant
230V-1Ph-60Hz

1.5 to 3.0 nominal tons

puron-refrigerant

Features

  • Ionizer technology
  • Turbo cooling
  • Four-way air distribution
  • Sleep mode
  • Fire alarm (optional)
  • Powerful cooling
  • Cost savings
  • Quiet performance
  • Corrosion-resistant casing

System Performance

Size
(tons)
Type Fan Coil
Model
Condensing Unit
Model
Rating Capacity
at T1 Condition
EER COP
Cooling
(BTU/h)
Heating
(kW)
1.5 Cooling Only 42KHL0183P 38KHL0183 18000 - 12.00 -
2.0 Cooling Only 42KHL0243P 38KHL0243 22000 - 12.22 -
2.5 Cooling Only 42XPL030C3P 38XPL030C3 28500 - 12.61 -
3.0 Cooling Only 42XPL036C3P 38XPL036C3 32500 - 12.31 -
1.5 Heat Pump 42QHL0183P 38QHL0183 17500 5.2 11.67 3.15
2.0 Heat Pump 42QHL0243P 38QHL0243 21500 6.5 11.94 3.16
2.5 Heat Pump 42XPL030H3P 38XPL030H3 27000 8.0 11.95 3.72
3.0 Heat Pump 42XPL036H3P 38XPL036H3 31500 9.4 11.93 3.53



42K/Q/X Indoor Fan Coil Unit Weights & Dimensions

Size
(Tons)
Type Model Net Weight
(kg)
Dimensions (mm)
Width Depth Height
1.5 Cooling Only 42KHL0183P 14 1080 231 295
2.0 Cooling Only 42KHL0243P 14 1080 231 295
2.5 Cooling Only 42XPL030C3P 23 1460 277 340
3.0 Cooling Only 42XPL036C3P 23 1460 277 340
1.5 Heat Pump 42QHL0183P 14 1080 231 295
2.0 Heat Pump 42QHL0243P 14 1080 231 295
2.5 Heat Pump 42XPL030H3P 23 1460 277 340
3.0 Heat Pump 42XPL036H3P 23 1460 277 340



38K/Q Outdoor Condensing Unit Weights & Dimensions

Size
(Tons)
Type Model Compressor Net Weight
(kg)
Dimensions
(mm)
Width Depth Height
1.5 Cooling Only 38KHL0183 Rotary 44 900 320 690
2.0 Cooling Only 38KHL0243 Rotary 50 900 320 820
2.5 Cooling Only 38XPL030C3 Scroll 51 900 320 820
3.0 Cooling Only 38XPL036C3 Scroll 54 900 320 820
1.5 Heat Pump 38QHL0183 Rotary 52 900 320 820
2.0 Heat Pump 38QHL0243 Rotary 61 900 320 820
2.5 Heat Pump 38XPL030H3 Scroll 58 900 320 820
3.0 Heat Pump 38XPL036H3 Scroll 61 900 320 820

Notes:
1. Cooling capacity is based on following condition: Indoor Air Temperatures 27°C (DB) / 19°C (WB) and Outdoor Air Temperatures 35°C (DB) / 24°C (WB)
2. We reserve the right to change these specifications without notice and without incurring any liability
