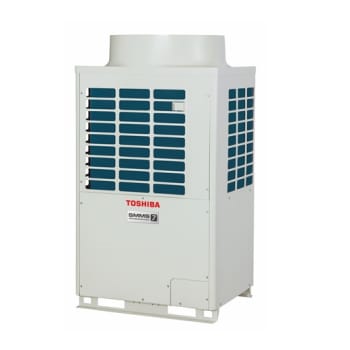

SMMSe MMY SERIES

SMMS-e VRF Heat Pump
With R410A Refrigerant

Cooling capacity: 12.1~16.0kW
Heating capacity: 12.5~37.5kW

Features

  • Greater efficiency performance with twin-rotary compressors
  • Single unit capacity expanded (up to 22HP)
  • Compact module size minimizes weight-related restrictions and achieve greater space efficiency
  • System capacity expanded , connect up to 60HP in one system, with up to 64 connectable indoor units
  • Increase more flexibility on installation with less foot print
  • Read and write data directly on smart phone device. Testing and commissioning can be also done without opening the cabinet.
  • Piping design flexibility with slimmer pipe size
  • Backup operation in case of a compressor failure

Physical Data

Capacity Model (MMY-) Cooling Capacity
(kW)		 Heating Capacity
(kW)		 Combination Models Dimensions HxWxD
(mm)
8HP MAP0806HT8P-HK 22.4 25   1800 x 990 x 780
10HP MAP1006HT8P-HK 28 31.5   1800 x 990 x 780
12HP MAP1206HT8P-HK 33.5 37.5   1800 x 990 x 780
14HP MAP1406HT8P-HK 40 45   1800 x 1210 x 780
16HP MAP1606HT8P-HK 45 50   1800 x 1210 x 780
18HP MAP1806HT8P-HK 50.4 56.0   1800 x 1600 x 780
20HP MAP2006HT8P-HK 56 63   1800 x 1600 x 780
22HP AP2216HT8P-HK 61.5 69.0 MAP1206HT8P-HK 1800 x 990 x 780
MAP1006HT8P-HK 1800 x 990 x 780
24HP AP2416HT8P-HK 67 75 MAP1206HT8P-HK 1800 x 990 x 780
MAP1206HT8P-HK 1800 x 990 x 780
26HP AP2616HT8P-HK 73.5 82.5 MAP1406HT8P-HK 1800 x 1210 x 780
MAP1206HT8P-HK 1800 x 990 x 780
28HP AP2816HT8P-HK 80.0 90.0 MAP1406HT8P-HK 1800 x 1210 x 780
MAP1406HT8P-HK 1800 x 1210 x 780
30HP AP3016HT8P-HK 85 95 MAP1606HT8P-HK 1800 x 1210 x 780
MAP1406HT8P-HK 1800 x 1210 x 780
32HP AP3216HT8P-HK 90 100 MAP1606HT8P-HK 1800 x 1210 x 780
MAP1606HT8P-HK 1800 x 1210 x 780
34HP AP3416HT8P-HK 95.4 106 MAP1806HT8P-HK 1800 x 1600 x 780
MAP1606HT8P-HK 1800 x 1210 x 780
36HP AP3616HT8P-HK 100.8 112.0 MAP1806HT8P-HK 1800 x 1600 x 780
MAP1806HT8P-HK 1800 x 1600 x 780
38HP AP3816HT8P-HK 106.4 119.0 MAP2006HT8P-HK 1800 x 1600 x 780
MAP1806HT8P-HK 1800 x 1600 x 780
40HP AP4016HT8P-HK 112 126 MAP2006HT8P-HK 1800 x 1600 x 780
MAP2006HT8P-HK 1800 x 1600 x 780
42HP AP4216HT8P-HK 120.0 135.0 MAP1406HT8P-HK 1800 x 1210 x 780
MAP1406HT8P-HK 1800 x 1210 x 780
MAP1406HT8P-HK 1800 x 1210 x 780
44HP AP4416HT8P-HK 125.0 140.0 MAP1606HT8P-HK 1800 x 1600 x 780
MAP1406HT8P-HK 1800 x 1600 x 780
MAP1406HT8P-HK 1800 x 1600 x 780
46HP AP4616HT8P-HK 130 145 MAP1606HT8P-HK 1800 x 1210 x 780
MAP1606HT8P-HK 1800 x 1210 x 780
MAP1406HT8P-HK 1800 x 1210 x 780
48HP AP4816HT8P-HK 135 150 MAP1606HT8P-HK 1800 x 1210 x 780
MAP1606HT8P-HK 1800 x 1210 x 780
MAP1606HT8P-HK 1800 x 1210 x 780
50HP AP5016HT8P-HK 140.4 156.0 MAP1806HT8P-HK 1800 x 1600 x 780
MAP1606HT8P-HK 1800 x 1210 x 780
MAP1606HT8P-HK 1800 x 1210 x 780
52HP AP5216HT8P 145.8 142.0 MAP1806HT8P-HK 1800 x 1600 x 780
MAP1806HT8P-HK 1800 x 1600 x 780
MAP1606HT8P-HK 1800 x 1210 x 780
54HP AP5416HT8P-HK 152.0 171.0 MAP2006HT8P-HK 1800 x 1600 x 780
MAP2006HT8P-HK 1800 x 1600 x 780
MAP1406HT8P-HK 1800 x 1210 x 780
56HP AP5616HT8P-HK 157 176 MAP2006HT8P-HK 1800 x 1600 x 780
MAP2006HT8P-HK 1800 x 1600 x 780
MAP1606HT8P-HK 1800 x 1210 x 780
