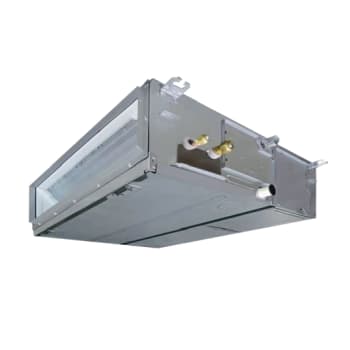

Standard MMD Series
Standard MMD Series
Concealed duct type
With R410A Refrigerant
Cooling capacity: 2.2~16.0kW
Heating capacity: 2.5~18.0kW
Features
- High static pressure
- External static pressure can be raised as high as 120 Pa, so that all areas of the room can be reached for even temperature distribution, no matter how complex the layout
Physical Data
| Model Name | Cooling Capacity
(kW) |
Heating Capacity
(kW) |
Dimensions HxWxD
(mm) |
| MMD-UP0071BHP-E | 2.2 | 2.5 | 275x700x750 |
| MMD-UP0091BHP-E | 2.8 | 3.2 | 275x700x750 |
| MMD-UP0121BHP-E | 3.6 | 4.0 | 275x700x750 |
| MMD-UP0151BHP-E | 4.5 | 5.0 | 275x700x750 |
| MMD-UP0181BHP-E | 5.6 | 6.3 | 275x700x750 |
| MMD-UP0241BHP-E | 7.1 | 8.0 | 275x1000x750 |
| MMD-UP0271BHP-E | 8.0 | 9.0 | 275x1000x750 |
| MMD-UP0301BHP-E | 9.0 | 10.0 | 275x1000x750 |
| MMD-UP0361BHP-E | 11.2 | 12.5 | 275x1400x750 |
| MMD-UP0481BHP-E | 14.0 | 16.0 | 275x1400x750 |
| MMD-UP0561BHP-E | 16.0 | 18.0 | 275x1400x750 |
