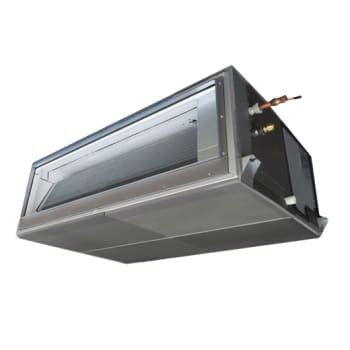

MMD Series
MMD Series
Fresh Air Intake Indoor Unit Type
With R410A Refrigerant
Cooling capacity: 14.0~40.0kW
Heating capacity: 8.9~25.2kW
Features
- Air controller for fresh-air intake
- Outside static pressure maximum 230Pa (in case of 50 Hz of 5HP)
- Use of high-performance filter provides more comfortable room environment
- Introduces outdoor air at a temperature close to that of the indoor air
- Primary processing of fresh outdoor air
Physical Data
| Model Name | Cooling Capacity
(kW) |
Heating Capacity
(kW) |
Dimensions HxWxD
(mm) |
| MMD-UP0481HFP-E | 14.0 | 8.9 | 327x1430x750 |
| MMD-UP0721HFP-E | 22.4 | 13.9 | 477x1430x900 |
| MMD-UP0961HFP-E | 28.0 | 17.4 | 477x1430x900 |
| MMD-UP1121HFP-E | 33.5 | 20.8 | 477x1430x900 |
| MMD-UP1281HFP-E | 40.0 | 25.2 | 477x1430x900 |
