MMC Series
MMC Series

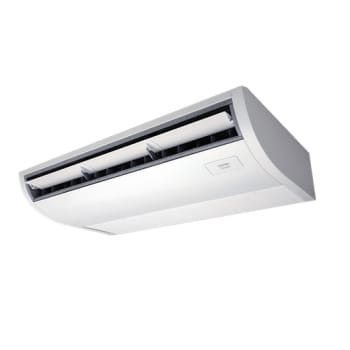

Ceiling type
With R410A Refrigerant
Cooling capacity: 4.5~16.0kW
Heating capacity: 5.0~18.0kW
Features
- Smooth curve for pliant shape
- All-new chassis and new rounded design, this new models have been developed in response to customers’ needs for ceiling units that better match their room interiors.
Physical Data
| Model Name | Cooling Capacity
(kW) |
Heating Capacity
(kW) |
Dimensions HxWxD
(mm) |
| MMC-UP0151HP-E | 4.5 | 5.0 | 235x952x690 |
| MMC-UP0181HP-E | 5.6 | 6.3 | 235x952x690 |
| MMC-UP0241HP-E | 7.1 | 8.0 | 235x1270x690 |
| MMC-UP0271HP-E | 8.0 | 9.0 | 235x1270x690 |
| MMC-UP0361HP-E | 11.2 | 12.5 | 235x1586x690 |
| MMC-UP0481HP-E | 14.0 | 16.0 | 235x1586x690 |
| MMC-UP0561HP-E | 16.0 | 18.0 | 235x1586x690 |
Features
- Smooth curve for pliant shape
- All-new chassis and new rounded design, this new models have been developed in response to customers’ needs for ceiling units that better match their room interiors.
Physical Data
| Model Name | Cooling Capacity
(kW) |
Heating Capacity
(kW) |
Dimensions HxWxD
(mm) |
| MMC-UP0151HP-E | 4.5 | 5.0 | 235x952x690 |
| MMC-UP0181HP-E | 5.6 | 6.3 | 235x952x690 |
| MMC-UP0241HP-E | 7.1 | 8.0 | 235x1270x690 |
| MMC-UP0271HP-E | 8.0 | 9.0 | 235x1270x690 |
| MMC-UP0361HP-E | 11.2 | 12.5 | 235x1586x690 |
| MMC-UP0481HP-E | 14.0 | 16.0 | 235x1586x690 |
| MMC-UP0561HP-E | 16.0 | 18.0 | 235x1586x690 |
