Medea®
Medea®

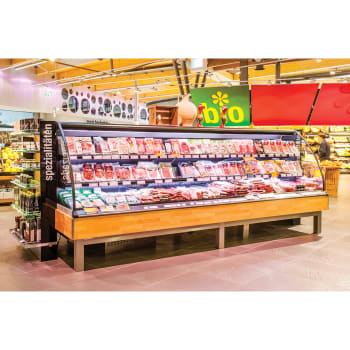

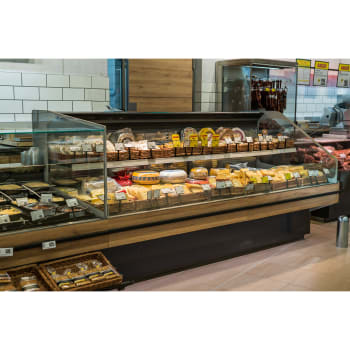

Multi-level self-service counter for elevated convenience
BENEFITS AT A GLANCE
Highly flexible merchandising options
- Two to four display levels
- Different modular lengths & heights
- Multiplexible with serve-over counters
Optimized energy efficiency & performance
- Energy-efficient EC fans
- Integrated night blind
Simplified maintenance
- High-quality, easy-to-clean materials
-
SYSTEM:
Plug-in;
Remote -
TEMP. RANGE:
2/4°C, 4/6°C
-
REFRIGERANT:
R744 (CO2),
R134, R404, Brine
-
ENERGY LABEL:
Enhance your merchandising on so many levels.
The ideal solution for multi-level merchandising, Medea combines first-class design and performance with eye-catching display of goods. A variety of accessories make the unit highly customizable to meet a wide range of customer demands. Recognizing the importance of hygiene in today’s stores, Medea places an emphasis on easy cleaning, with easy-to-wash materials and components. Operational longevity is also a hallmark of Medea, as are temperature reliability, energy savings and an ergonomic design.
Standard Features
- Refrigerated semi-vertical cabinet with fan-assisted air circulation
- Provided with low front glass, display bottom deck and one/two/three rows of shelves without lighting and price-ticket holder
- Foam-filled carcass in galvanized pre-painted steel
- Cabinet interior (display decks, shelves, air return grills and back panels) powder-coated white (FA0117) or black (RAL9005)
- External back panel in galvanized steel
- Top canopy painted in RAL9006 without lighting
- Evaporator coil with cataphoresis protection -fins, off-cycle defrost
- Energy-saving fans, air discharge with honeycomb
- Solar digital thermometer
- Terminal block for electrical connections
- 2 display depths (750mm and 900mm)
- 3 cabinet heights (SD-ST-SQ)
- 3 base heights (600mm, 540mm and 400mm)
- Evaporator R404A protected by cataphoresis
- 1 – 2 – 3 display shelves (SD-ST-SQ)
- Terminal block for electrical connections
Accessories
- Canopy and shelves lighting
- Product dividers
- Pricing rail
- Cabinet with pedestals
- Electric defrost heater
- Terminal rail for third-party controller
- Night blind
Dimensions (mm)
- 4 lengths (1250, 1875, 2500, 3750)
- Corners (EC/IC45, EC/IC90) CE (crown end)
- 2 display decks (750, 900)
- 3 heights (H,M,L)
- Ventilated
| Medea
|
125
|
188
|
250
|
375
|
CE*
|
EC 45°
|
EC 90°
|
IC 45°
|
IC 90°
|
| Total display area (m2)
|
|||||||||
| Medea SD. 75H A
|
1.57
|
2.35
|
3.14
|
4.71
|
2.35
|
-
|
- | -
|
- |
| Medea ST. 75H A
|
2.06
|
3.10
|
4.13
|
6.19
|
3.10
|
-
|
- | - | - |
| Medea SQ. 75H A
|
2.51
|
3.72
|
5.03
|
7.54
|
3.72
|
-
|
- | - | - |
| Medea SD. 90H A
|
1.76
|
2.63
|
3.51
|
5.27
|
3.10
|
1.52
|
2.44 | 1.91 | 3.82 |
| Medea ST. 90H A
|
2.25
|
3.38
|
4.50
|
6.75
|
3.98
|
1.90 | 3.03 | 2.51
|
5.02
|
| Medea SQ. 90H A
|
2.70
|
4.00
|
5.40
|
8.10
|
4.75
|
2.22
|
3.52 | 3.04 | 6.08
|
| Medea SD. 75M A
|
1.57
|
2.35 | 3.14 | 4.71 | 2.35 | -
|
- | - | - |
| Medea ST. 75M A | 2.06
|
3.10 | 4.13 | 6.19 | 3.10 | -
|
- | - | -
|
| Medea SQ. 75M A
|
2.51 | 3.72 | 5.03 | 7.54 | 3.72 | - | - | - | - |
| Medea SD. 90M A
|
1.76 | 2.63 | 3.51 | 5.27 | 3.10 | 1.52 | 2.44 | 1.91 | 3.82 |
| Medea ST. 90M A | 2.25 | 3.38 | 4.50 | 6.75 | 3.98 | 1.90 | 3.03 | 2.51 | 5.02 |
| Medea SQ 90M A | 2.70 | 4.00 | 5.40 | 8.10 | 4.75 | 2.22 | 3.52 | 3.04 | 6.08 |
| Medea SD. 75L A | 1.57 | 2.35 | 3.14 | 4.71 | 2.35 | - | - | - | - |
| Medea ST. 75L A | 2.06 | 3.10 | 4.13 | 6.19 | 3.10 | - | - | - | - |
| Medea SQ. 75L A | 2.51 | 3.72 | 5.03 | 7.54 | 3.72 | - | - | - | - |
| Medea SD. 90L A | 1.76 | 2.63 | 3.51 | 5.27 | 3.10 | 1.52 | 2.44 | 1.91 | 3.82 |
| Medea ST. 90L A | 2.25 | 3.38 | 4.50 | 6.75 | 3.98 | 1.90 | 3.03 | 2.51 | 5.02 |
| Medea SQ. 90L A | 2.70 | 4.00 | 5.40 | 8.10 | 4.75 | 2.22 | 3.52 | 3.04 | 6.08 |
| Temperature range** (°C) | +2 /+4 +4 /+6 | ||||||||
** These temperature ranges are shown in general for the refrigerated cabinets. Please refer to the technical manual to match the right temperature range to the different versions.
-
Counter Line 2022 Published Date: 3/5/2024
