Carrier Vatna LCV Truck Refrigeration Unit

Vatna Truck Refrigeration Units

Eutectic technology for your delivery vehicle

The Vatna range is an eutectic truck refrigeration system dedicated to the distribution of frozen food and ice cream for volumes from 5 to 23 m3.

Vatna Key Features and Benefits

Ease of Use

Operating automatically, the Vatna units work by cooling eutectic plates using R404A refrigerant whilst plugged in overnight. Cooling capacity is released during daytime operation. Plug it at night, deliver all day long.

Cost Efficiency

Operating automatically, limited maintenance is needed. However, accessibility is enhanced for easy servicing and reduced costs. Maximum load is possible thanks to the low thickness of the plaques used.

Flexibility

According to your needs, type of goods, doors openings, vehicle used, nosemount (H) or undermount (B), different configurations are available. Demonstrating low noise levels, it is suitable for urban deliveries.

Standard Features

  • Remote standby plug (only on H/nosemount version)
  • Fixing accessories
  • Set of eutectic plates and accessories (mounting bolts, expansion valve, fittings)
  • Set of refrigeration components (copper tube, elbows, tees)

View the full Vatna range

Vatna 200 H-B

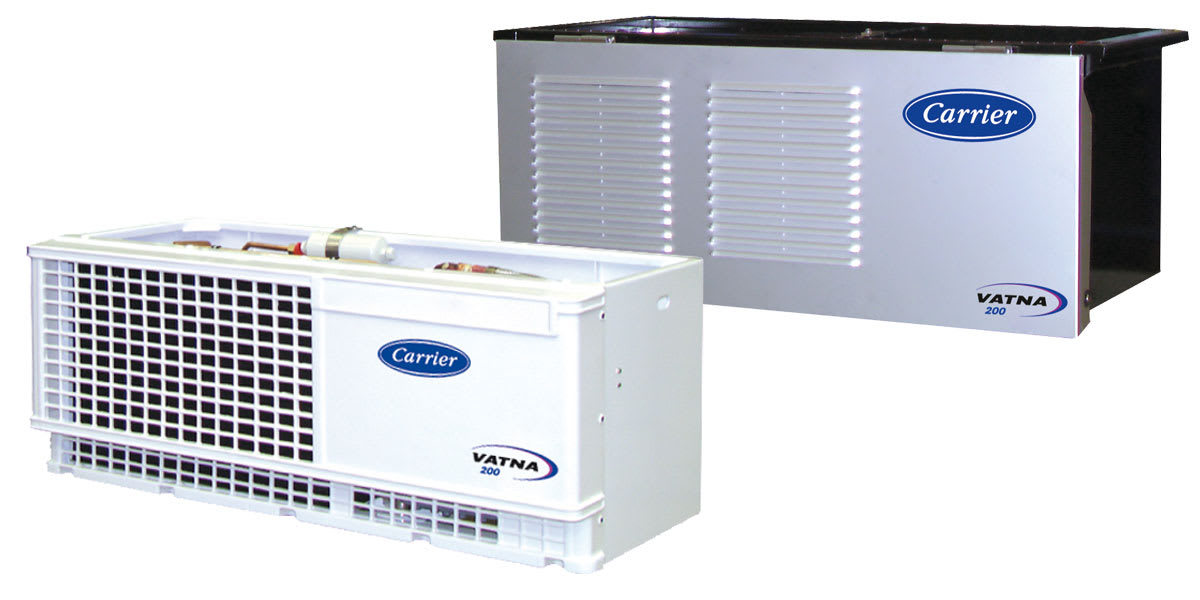

Carrier Vatna 200 H-B Refrigeration Unit Carrier Vatna 200 logo

Specifications

Refrigeration Capacity
(System net cooling capacity under A.T.P. Conditions at 30° C ambient)

Model VATNA 203 - 3 plates VATNA 204 - 4 plates
Accumulated capacity 33 500 kJ 44 700 kJ
K*Ms 7,2 W/°C 8,8 W/°C

Weight

Nosemount condenser 140 kg
Undermount condenser 145 kg
Plate 85 kg

Motocompressor

Model CT215
Displacement 167 cm3
n° of cylinders 2

Electrical Stand by Motor

Voltage / Phase / Frequency 400/3/50 Hz

Refrigerant

Type R-404A

Unit

Nosemount condenser dimensions (D x W x H) 553 x 1000 x 420mm
Undermount condenser dimensions (D x W x H) 505 x 1100 x 440mm

Schematic Diagrams

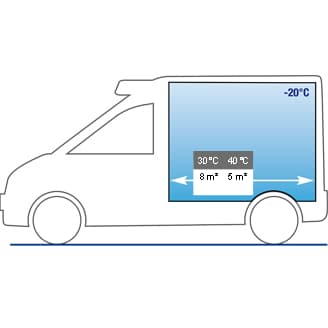

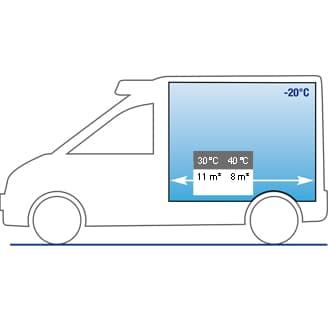

Carrier Vatna 200 LCV Refrigeration Unit schematic diagram 5-8 Carrier Vatna 200 LCV Refrigeration Unit schematic diagram 8-11

Vatna 300 H-B

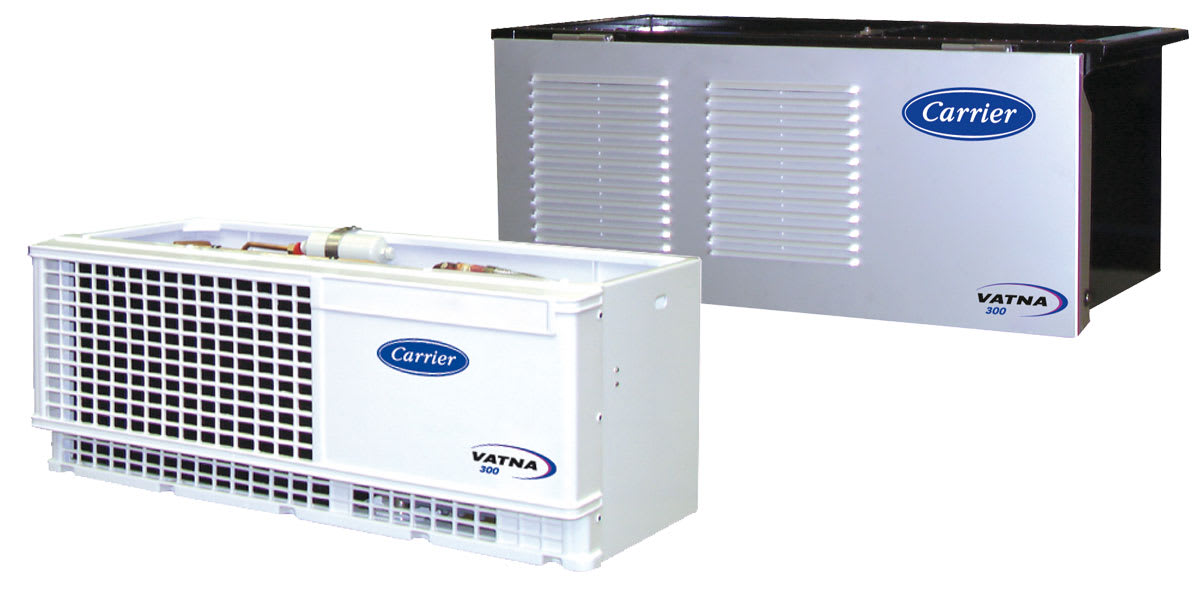

Carrier Vatna 300 H-B Refrigeration Unit Carrier Vatna 300 logo

Specifications

Refrigeration Capacity
(System net cooling capacity under A.T.P. Conditions at 30° C ambient)

Model VATNA 305- 5 plates VATNA 306- 6 plates
Accumulated capacity 55 800 kJ 67 000 kJ
K*Ms 11 W/°C 13,4 W/°C

Weight

Nosemount condenser 185 kg
Undermount condenser 195 kg
Plate 85 kg

Motocompressor

Model CT318
Displacement 208 cm3
n° of cylinders 2

Electrical Stand by Motor

Voltage / Phase / Frequency 400/3/50 Hz

Refrigerant

Type R-404A

Unit

Nosemount condenser dimensions (D x W x H) 555 x 1270 x 500mm
Undermount condenser dimensions  (D x W x H) 570 x 1250 x 515mm

Schematic Diagrams

Carrier Vatna 300 LCV Refrigeration Unit schematic diagram 11-14 Carrier Vatna 300 LCV Refrigeration Unit schematic diagram 14-17

Vatna 400 H

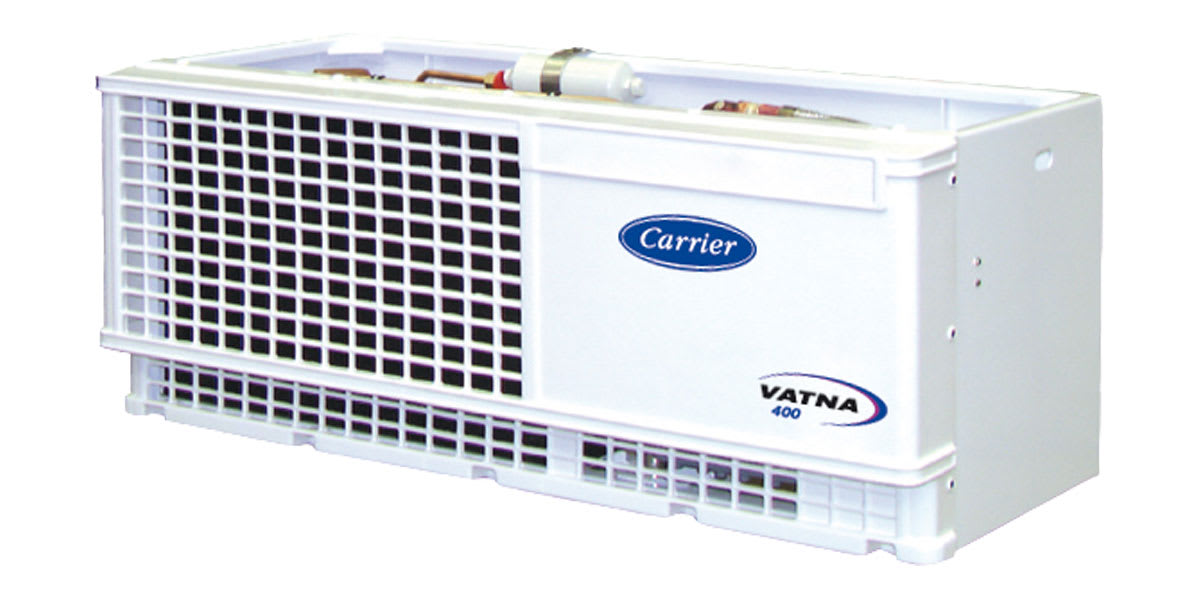

Carrier Vatna 400 H Refrigeration Unit Carrier Vatna 400 logo

Specifications

Refrigeration Capacity

System net cooling capacity under A.T.P. Conditions at 30° C ambient

Model

VATNA 150 – 2 plates

Accumulated capacity

19 300 kJ

K*Ms

6,3 W/°C

Weight

Nosemount condenser

90 kg

Plate

85 kg

Motocompressor

Model

CT159

Displacement

105 cm3

n° of cylinders

2

Electrical Stand by Motor

Voltage / Phase / Frequency

400/3/50 Hz

Refrigerant

Type

R-404A

Generic (Boxlength, Refrigerant, ...)

Condenser dimensions (D x W x H)

553 x 1000 x 420 mm


Schematic Diagrams

Carrier Vatna 400 LCV Refrigeration Unit schematic diagram 17-20 Carrier Vatna 400 LCV Refrigeration Unit schematic diagram 19-23
