Carrier Neos Direct Drive Truck Refrigeration Unit

Neos Direct Drive Truck Refrigeration Units

Alternator driven refrigeration units with easy installation for small delivery vehicles

Alternator driven, the Neos refrigeration range combines constant cooling and heating for vehicles up to 6 mm3 with flexible installation. Available in two versions, Slim & Split, it is a versatile and reliable choice for customers wanting cargo protection, reliability and driver’s comfort.

Neos Key Features and Benefits

Designed for Practicality

With two installation concepts, Neos can be integrated into the vehicle or fitted externally to meet all type of vehicle insulation. It’s fully compatible with vehicle air conditioning so that both driver and cargo stay cool during transportation.

Preserving the Cold Chain

With 1160 W at 0°C, NEOS ensures excellent cargo protection.

First for Safety and the Environment

  • Driver Protection : unit will not compromise vehicle safety features or reinforcements
  • Care for environment : uses a chlorine-free, zero ozone-depletion R134a refrigerant
  • Efficient Solution : powered from the alternator resulting in fewer hoses and fittings, less refrigerant and reduced risk of leaks

External for Extra Space

Fitted externally to nose mount or roof allows more loading space inside the vehicle.

Integrated for Efficiency

The Slim concept has the lowest profile on the market for ease of parking, improved aerodynamics and fuel efficiency, and reduced noise for added driver comfort.

View the Neos series

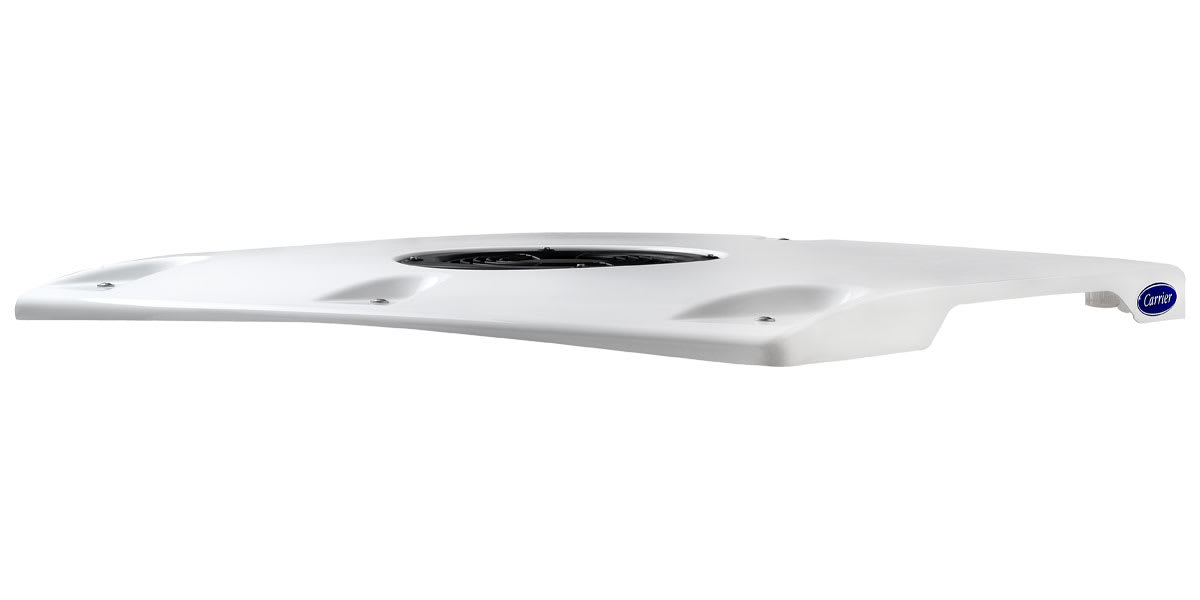

Neos 100


Carrier Neos 100 Slim Direct Drive Truck Refrigeration Unit Carrier Neos 100 logo

Specifications

Refrigeration Capacity
(System net cooling capacity under A.T.P. Conditions at 30° C ambient)

Capacity on engine power 0°C (W) 1 210
Capacity on engine power -20°C (W) 470
Capacity on electrical stand by 0°C (W) 1 190
Capacity on electrical stand by -20°C (W) 470

Airflow
(High speed engine operation)

(AMCA 21085) m3/hr 570

Weight

- 63 kg

Compressor

Model SD5H09
Displacement 87 cm3
n° of cylinders 5

Electrical Stand by Motor

Voltage / Phase / Frequency 230/1/50 Hz
240/1/60 Hz
Rating 1 420 W

Refrigerant

Type R-134A
Charge 0,9 kg

Sound Pressure

High speed 53,4 dBA

Unit

Dimensions (D x W x H) 822 x 904 x 223 mm

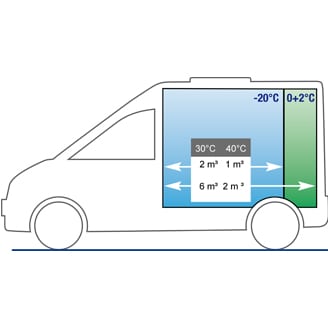

Schematic Diagrams

Carrier Neos 100 Direct Drive Truck Refrigeration Unit schematic diagram

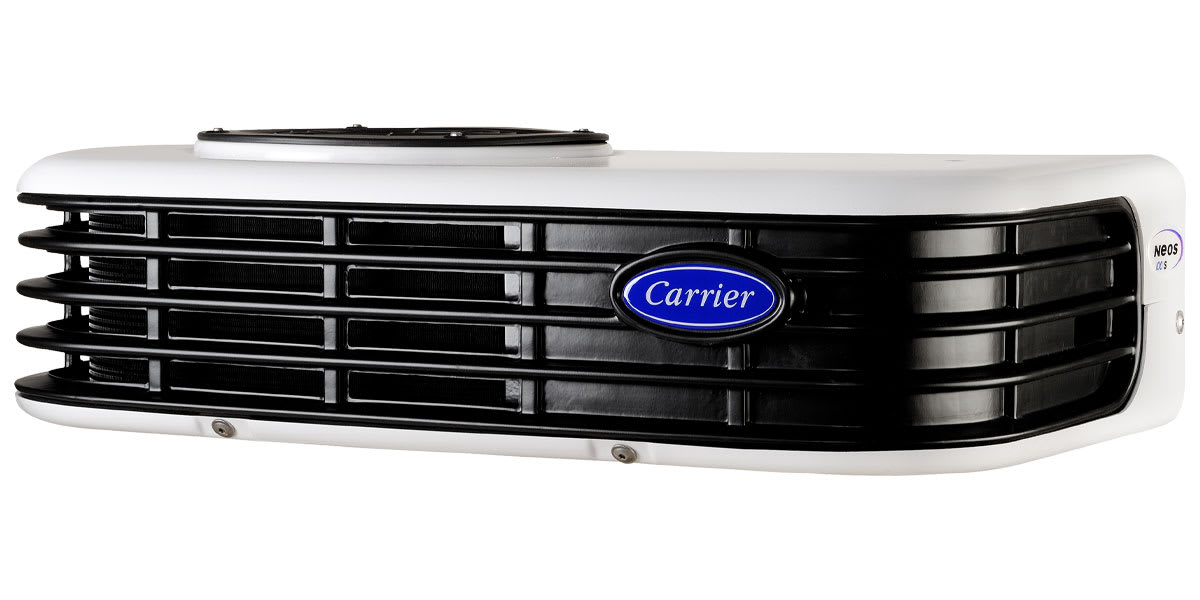

Neos 100 S


Carrier Neos 100 S Split Direct Drive Truck Refrigeration Unit Carrier Neos 100 S logo

Specifications

Refrigeration Capacity
(System net cooling capacity under A.T.P. Conditions at 30° C ambient)

Capacity on engine power 0°C (W) 1 160
Capacity on engine power -20°C (W) 450
Capacity on electrical stand by 0°C (W) 1 190
Capacity on electrical stand by -20°C (W) 450

Airflow
(High speed engine operation)

(AMCA 21085) m3/hr 700

Weight

Condenser 48 kg
Evaporator (MNS600) 15

Compressor

Model SD5H09
Displacement 87 cm3
n° of cylinders 5

Electrical Stand by Motor

Voltage / Phase / Frequency 230/1/50 Hz
240/1/60 Hz
Rating 1 420 W

Refrigerant

Type R-134A
Charge 1 kg

Sound pressure

High speed 57dBA

Unit

Dimensions (D x W x H) 480 x 864 x 232mm

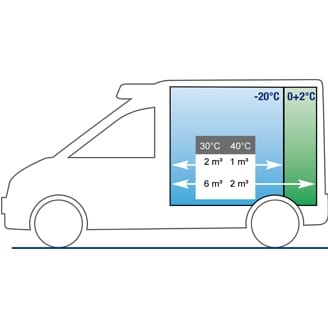

Schematic Diagrams

Carrier Neos 100 S Direct Drive Truck Refrigeration Unit schematic diagram
