HeatCO2OL Industrial
HeatCO2OL™ Industrial
The natural solution for high-temperature heat pumps and industrial chillers with low environmental impact
BENEFITS AT A GLANCE
- Uses CO2 natural refrigerant
- Up to 90°C hot water production
- High efficiency / COP
- Up to 4 levels of water temperature on the same unit

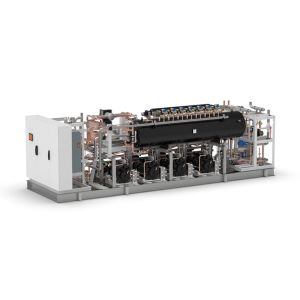

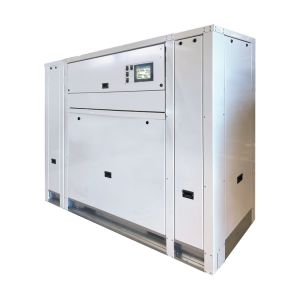

Industrial CO2 heat pump / chiller solution
CO2 heat pump with integrated Carrier ejector technology for high temperature heating applications and low environmental impact
Our new CO2 industrial heat pump range offers a natural solution for a wide range of applications that is compact, modular, safe and easy to install and service.
NB of compressors
- 3-8 (MT)
Dimensions
- Size S : W 1000 x L 5000 / 5900 x H 2200 mm
- Size M : W 1200 x L 7500 x H 2200 mm
- Size L : W 2100 x L 6500/7400/8400/9300 x H 2200 mm
Heating capacity
- 400 to 2200 kW
Cooling capacity
- Up to 1500 kW (MT)
Key Features
- Uses CO2 natural refrigerant
- Not impacted by the EU F-Gas Regulation
- Up to 90°C hot water production
- Compatible with low water inlet temperature and high temperature lift
- Heat source from 20°C to -40°C
- Simultaneously 3 different temperature levels on the heating side and one level on the cooling side
- Semi-hermetic compressors, Inverter driven compressor N°1 (optional for N°2)
- Multiple compressors/ heat exchanger configurations and options to suit your needs at best
- Integrated PLC , large touch screen HMI, Connectable for remote monitoring, preventive maintenance and BMS
- Optimized footprint
- Numerous options available
- Sound proofing
- Energy measurement
- Smart control for several units in parallel
- And many others
Industrial CO2 heat pump / chiller solution
CO2 heat pump with integrated Carrier ejector technology for high temperature heating applications and low environmental impact
Our new CO2 industrial heat pump range offers a natural solution for a wide range of applications that is compact, modular, safe and easy to install and service.
NB of compressors
- 3-8 (MT)
Dimensions
- Size S : W 1000 x L 5000 / 5900 x H 2200 mm
- Size M : W 1200 x L 7500 x H 2200 mm
- Size L : W 2100 x L 6500/7400/8400/9300 x H 2200 mm
Heating capacity
- 400 to 2200 kW
Cooling capacity
- Up to 1500 kW (MT)
Key Features
- Uses CO2 natural refrigerant
- Not impacted by the EU F-Gas Regulation
- Up to 90°C hot water production
- Compatible with low water inlet temperature and high temperature lift
- Heat source from 20°C to -40°C
- Simultaneously 3 different temperature levels on the heating side and one level on the cooling side
- Semi-hermetic compressors, Inverter driven compressor N°1 (optional for N°2)
- Multiple compressors/ heat exchanger configurations and options to suit your needs at best
- Integrated PLC , large touch screen HMI, Connectable for remote monitoring, preventive maintenance and BMS
- Optimized footprint
- Numerous options available
- Sound proofing
- Energy measurement
- Smart control for several units in parallel
- And many others
