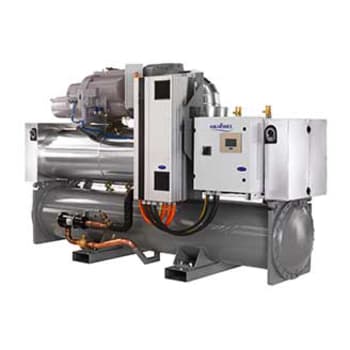

AquaForce®
30XW-V
Water-cooled variable-speed screw chillers s
The 30XW-V water-sourced units are the premium solution for commercial and industrial applications where installers, consultants and building owners require maximum quality and optimal performances, especially at part load.
The 30XW-V units are designed to meet current and future requirements in terms of energy efficiency, versatility and compactness. They feature exclusive inverter-driven screw compressors - an evolution of the proven traditional Carrier twin-rotor screw compressor design.
Nominal cooling capacity 587-1741 Kw
Performance Features
- Eurovent energy efficiency class “A”
- Eurovent certified values per EN14511-3:2013: EER up to 5.5 and ESEER up to 8.0
- GROSS EER up to 5.8 kW/kW and ESEER up to 9.5 kW/Kw
- Non-ozone depleting chlorine-free refrigerant HFC-134a
- Low energy consumption during part load and full load operation
- Leaving-fluid temperature directly controlled to within 0.5°F (0.3°C)
- As standard, the unit can provide an evaporator leaving water temperature down to 3.3°C.
- Entering-fluid temperature continuously monitored to detect flow or load changes
- ASHRAE 90.1 compliant
- Heat recovery capability up to 140°F (60°C)
- Good life-cycle cost with short payback time
Product Features
- Inverter-driven twin-rotor screw compressors with Greenspeed™ Technology which allow precise capacity matching of building load changes and significantly with high full load and part load efficiency.
- Compressor capacity adjustment by varying the motor speed that permits exact matching of the cooling capacity to the load.
- New colorful screen and new generation Touch Pilot Control system
- Flooded multi-pipe evaporator and condenser for increased heat exchange efficiency.
- Electronic expansion valve ensures high control precision.
- Inverter-driven motors ensure negligible start-up current, optimized electrical performance.
- Industrial-type screw compressors with oversized bearings and motor cooled by suction gas.
- Reduced number of moving parts, with compressor rotors directly driven by the motor, to lower the failure rate
- Electronic paddle-free flow switch. Auto-setting according to cooler size and fluid type
- Automatic compressor unloading in case of abnormally high condensing pressure or discharge temperature
- Low voltage control circuits
- Short cycle protection
- Connect to the PC using a web browser with Java,to connect to the Touch Pilot control enter the IP address of the unit in the address bar of the web browser
- Compatible with Carrier Comfort Network® (CCN) communication link
- Offers industrial and commercial customers a best-in-class solution for hotels and office buildings , underground railway systems, as well as retrofit projects
Maintenance Features
- Hermetic twin screw compressors
- Mechanically cleanable condenser and evaporator
- Alarm contacts
- Filter drier
- Service contract available
Installation Features
- With a relatively small width, only require minimum floor space in the plant room.
- Victaulic connections on the evaporator and condenser, easy and fast installation
- Possibility to reverse the heat exchanger water inlet and outlet at the factory
- Simplified electrical connections, main disconnect switch with high trip capacity and transformer supply to the integrated control circuit (400/24 V)
- Fast commissioning, systematic factory operation test before shipment
Standard Warranty
- One year from start-up or 18 months from shipment
Factory-Installed Options
- Non-fused disconnect
- Control power transformer
- Marine water boxes
- Flange connections
- Suction service valves
- Discharge and liquid line shutoff valves
- Isolation valves
- One-pass evaporator water box
- Three-pass evaporator water box
- One-pass condenser water box
- Minimum load control
- Navigator display module
- Standard water-side operating pressure of 150 psig (1034 kPa) with an available option of 300 psig (2068 kPa)
- Customer factory performance testing
- Possibility to reverse the heat exchanger water inlet and outlet at the factory
Field-Installed Accessories
- Temperature reset sensor
- LON translator control
- BACnet translator control
- Sound Attenuation Packages
- Navigator display module
- Neoprene vibration isolation pads
- Vibration isolation springs
