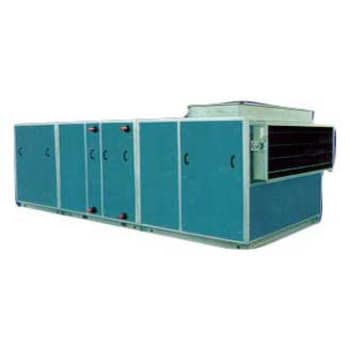

39G

Air Handler
Double-Wall

Standard Air Handling Units: multistandard function combinations available for designers and customers to choose based on the actual requirements.
Double Skin Panel with Thermo- Isolation of PU Foam: 20 mm thick foam panel features light weight,good rigidity and low thermo conductivity.
New Type Sealing Material: Air leakage is minimized by the new type sealing material combined with specially designed aluminium alloy frame.
Bottom Drain Piping: All the condensates from the water pan are drained completely though bottom drain piping.
External Coils Drainage Valve: the external drainage valve is equipped at the lowest point of colis for complete drainage and guarding against freezing.
Airfoil Damper: Gear driven airfoil can be opened and closed freely,and electric acutator can be implemented if necessary.
Unit Fundament: each section is equipped with a fundamental for strength improvement ,making transportation and assembly easier.

Features

Standard Air Handling Units: multistandard function combinations available for designers and customers to choose based on the actual requirements.
Double Skin Panel with Thermo- Isolation of PU Foam: 20 mm thick foam panel features light weight,good rigidity and low thermo conductivity.
New Type Sealing Material: Air leakage is minimized by the new type sealing material combined with specially designed aluminium alloy frame.
Bottom Drain Piping: All the condensates from the water pan are drained completely though bottom drain piping.
External Coils Drainage Valve: the external drainage valve is equipped at the lowest point of colis for complete drainage and guarding against freezing.
Airfoil Damper: Gear driven airfoil can be opened and closed freely,and electric acutator can be implemented if necessary.
Unit Fundament: each section is equipped with a fundamental for strength improvement ,making transportation and assembly easier.
