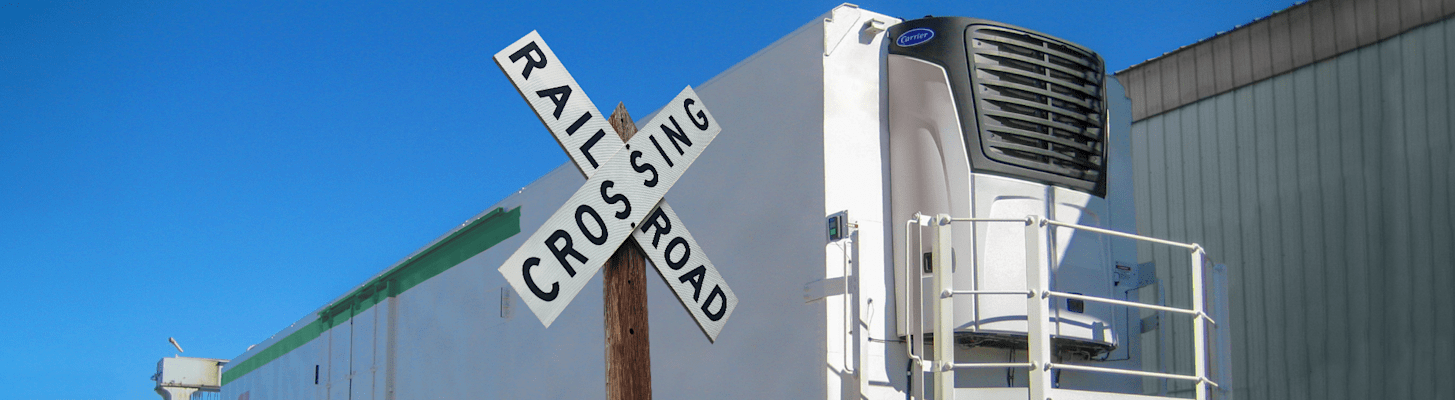

Vector® HE 19 Domestic Intermodal Refrigeration System Vector HE 19
Vector® HE 19 Domestic Intermodal Refrigeration System
Vector HE 19
High-Efficiency Transport Refrigeration System with a Space-Saving Design
Features and Benefits:
- Thin and trim. A highly efficient transport refrigeration system that fits within a trim envelope and maximizes usable cargo area for more efficient operations.
- E-Drive™ technology. A hallmark of the Carrier Transicold Vector platform. Our hybrid design combines a diesel engine, direct-driven generator and electric refrigeration to deliver the best-in-class reliability for unattended operation.
- High-performance cooling capacity. Delivers over 15% more deep frozen cooling capacity that competing models.
- Nationwide support network. More than 180 Carrier Transicold authorized dealers available throughout North America with experience and expertise to provide safe, reliable service wherever needed.
- Carrier Transicold Standard Warranty. Includes travel time and repair setup for on-site assistance.
Condenser Dimensions:
80.8" x 88.4" x 17.1"
(1,680 x 1,150 x 94 mm)
Evaporator Dimensions:
66.1" x 45.3" x 3.99"
(1,680 x 1,150 x 100 mm)
Body Opening:
66.9" x 46.0"
(1,700 x 1,170 mm)
Approximate Weight:
1,775 lb. (805 kg) including electric standby
Battery (not supplied): 50 lb. (23 kg)
Cooling Capacity:
| Evaporator Return Air Temp. | Diesel Operation | |
| BTU/hr | Watts | |
| 35°F ( 2°C) | 55,500 | 16,250 |
| 0°F (-18°C) | 35,000 | 10,250 |
| -20°F (-29°C) | 22,000 | 6,500 |
Ambient at 100°F (38°C)
Evaporator Airflow
Applied system performance:
3,250 cfm (5,550 m3/hr)
