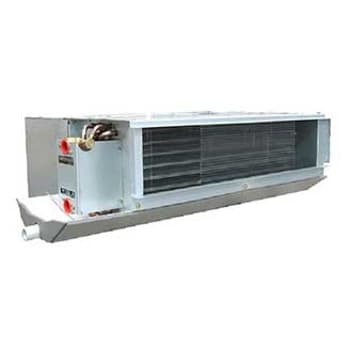

42CET/CED

Chilled Water Fan Coil Unit
Furred-in Ceiling

300 to 1,400 nominal cfm

42CET - Standard unit
42CED - District cooling

Carrier’s 42CET Standard Cooling/ 42CED District Cooling Chilled Water Fan Coil Units, furred-in with capacities from 300 to 1,400 cfm are ideal for installations in residential, hotels, motels, apartments, offices, hospitals, schools and other multi-room buildings.

Carrier 42 series terminals require very little space and are easy to install.

  • Airflow ranges from 300 to 1400 cfm
  • 42CET Standard cooling
  • 42CED District cooling
  • Fully insulated, low fan speed means quiet operation
  • Efficient, 3-speed centrifugal fans
  • Permanent split capacitor motors
  • Long life, heavy duty bearings
  • High efficiency heat transfer surface
  • Easy wiring, piping connections
  • Insulated drain pan
  • Factory leak test for coil
  • Mounting holes, slots speed hanging
  • Unit shall be tested in accordance with ARI Standard 440
  • Uses only minimal space
  • Accommodates 2 pipe systems
  • Washable aluminum filter
  • Factory installed heater option
  • Remote mounted thermostats
  • Special filters
  • Stainless steel drain pan
  • ECM motor

42CET - Standard Unit (Sizes 003 - 006)

003 004 005 006
Nominal Airflow (cfm) 300 400 500 600
Nominal Airflow (l/s) 142 189 236 283
Fluid Cooling Capacity (Btu/hr)* 7,539 10,823 11,465 12,325
Fluid Cooling Capacity (kW)* 2.21 3.17 3.36 3.61
Motor Type Permanent Split Capacitor
Motor Nominal Power Output (Watts) 30 51 55 52
Motor Nominal Current (Amps) .36 .51 .49 .52
Fan Type Centrifugal Forward Curved Blades
Sound Pressure High (dB(A))** 37.1 37.4 39.1 40.4
Sound Pressure Medium (dB(A))** 34.6 34.9 35.8 38.8
Sound Pressure Low (dB(A))** 33.0 32.1 32.4 35.4
Water Flow (l/s) 0.06 0.09 0.09 0.10
Water Pressure Drop (kPa) 4.4 10.7 5.9 5.3
Coil (Row/FPI) 4 / 14
Coil Working Pressure (Mpa) 1.72
Connection In-Out (sweat) /Material 3/4" FPT (BSP) / Brass
Connection Condensate Drain / Material 3/4" MPT (BSP) / GI Steel

Notes:
* Base on motor at high speed, standard air and dry coil operation, 5.6°C water temperature rise; entering air temperature 24.4°C DB; 17.2°C WB, Entering water temperature 7.2°C.
** Sound measurement in accordance with Standard JIS8616-2006 (1.5m below the unit bottom).



42CET - Standard Unit (Sizes 008 - 014)

008 010 012 014
Nominal Airflow (Cfm) 800 1000 1200 1400
Nominal Airflow (l/s) 378 472 566 661
Fluid Cooling Capacity (Btu/hr)* 18,551 20,043 21,868 26,505
Fluid Cooling Capacity (kW)* 5.44 5.87 6.41 7.77
Motor Type Permanent Split Capacitor
Motor Nominal Power Output (Watts) 2x46 2x55 2x52 3x48
Motor Nominal Current (Amps) 0.96 0.98 1.04 1.65
Fan Type Centrifugal Forward Curved Blades
Sound Pressure High (dB(A))** 41.3 43.1 43.3 43.5
Sound Pressure Medium (dB(A))** 38.8 40.8 39.9 41.8
Sound Pressure Low (dB(A))** 34.6 37.2 37.6 39.8
Water Flow (l/s) 0.15 0.16 0.17 0.21
Water Pressure Drop (kPa) 12.1 15.2 7.4 12.2
Coil (Row/FPI) 4 / 14
Coil Working Pressure (Mpa) 1.72
Connection In-Out (sweat) /Material 3/4" FPT (BSP) / Brass
Connection Condensate Drain / Material 3/4" MPT (BSP) / GI Steel

Notes:
* Base on motor at high speed, standard air and dry coil operation, 5.6°C water temperature rise; entering air temperature 24.4°C DB; 17.2°C WB, Entering water temperature 7.2°C.
** Sound measurement in accordance with Standard JIS8616-2006 (1.5m below the unit bottom).



42CED - District Cooling Unit (Sizes 003 - 006)

003 004 005 006
Nominal Airflow (Cfm) 300 400 500 600
Nominal Airflow (l/s) 142 189 236 283
Fluid Cooling Capacity (Btu/hr)* 7,539 10,823 11,465 12,325
Fluid Cooling Capacity (kW)* 2.21 3.17 3.36 3.61
Motor Type Permanent Split Capacitor
Motor Nominal Power Output (Watts) 30 51 55 52
Motor Nominal Current (Amps) .36 .51 .49 .52
Fan Type Centrifugal Forward Curved Blades
Sound Pressure High (dB(A))** 37.1 37.4 39.1 40.4
Sound Pressure Medium (dB(A))** 34.6 34.9 35.8 38.8
Sound Pressure Low (dB(A))** 33.0 32.1 32.4 35.4
Water Flow (l/s) 0.06 0.09 0.09 0.10
Water Pressure Drop (kPa) 4.4 10.7 5.9 5.3
Coil (Row/FPI) 4 / 14
Coil Working Pressure (Mpa) 1.72
Connection In-Out (sweat) /Material 3/4" FPT (BSP) / Brass
Connection Condensate Drain / Material 3/4" MPT (BSP) / GI Steel

Notes:
* Base on motor at high speed, standard air and dry coil operation, 8.9°C water temperature rise; entering air temperature 24.4°C DB; 17.2°C WB, Entering water temperature 5.5°C.
** Sound measurement in accordance with Standard JIS8616-2006 (1.5m below the unit bottom).



42CED - District Cooling Unit (Sizes 008 - 014)

008 010 012 014
Nominal Airflow (Cfm) 800 1000 1200 1400
Nominal Airflow (l/s) 378 472 566 661
Fluid Cooling Capacity (Btu/hr)* 18,551 20,043 21,868 26,505
Fluid Cooling Capacity (kW)* 5.44 5.87 6.41 7.77
Motor Type Permanent Split Capacitor
Motor Nominal Power Output (Watts) 2x46 2x55 2x52 3x48
Motor Nominal Current (Amps) 0.96 0.98 1.04 1.65
Fan Type Centrifugal Forward Curved Blades
Sound Pressure High (dB(A))** 41.3 43.1 43.3 43.5
Sound Pressure Medium (dB(A))** 38.8 40.8 39.9 41.8
Sound Pressure Low (dB(A))** 34.6 37.2 37.6 39.8
Water Flow (l/s) 0.15 0.16 0.17 0.21
Water Pressure Drop (kPa) 12.1 15.2 7.4 12.2
Coil (Row/FPI) 4 / 14
Coil Working Pressure (Mpa) 1.72
Connection In-Out (sweat) /Material 3/4" FPT (BSP) / Brass
Connection Condensate Drain / Material 3/4" MPT (BSP) / GI Steel

Notes:
* Base on motor at high speed, standard air and dry coil operation, 8.9°C water temperature rise; entering air temperature 24.4°C DB; 17.2°C WB, Entering water temperature 5.5°C.
** Sound measurement in accordance with Standard JIS8616-2006 (1.5m below the unit bottom).

  • Airflow ranges from 300 to 1400 cfm
  • 42CET Standard cooling
  • 42CED District cooling
  • Fully insulated, low fan speed means quiet operation
  • Efficient, 3-speed centrifugal fans
  • Permanent split capacitor motors
  • Long life, heavy duty bearings
  • High efficiency heat transfer surface
  • Easy wiring, piping connections
  • Insulated drain pan
  • Factory leak test for coil
  • Mounting holes, slots speed hanging
  • Unit shall be tested in accordance with ARI Standard 440
  • Uses only minimal space
  • Accommodates 2 pipe systems
  • Washable aluminum filter
  • Factory installed heater option
  • Remote mounted thermostats
  • Special filters
  • Stainless steel drain pan
  • ECM motor

42CET - Standard Unit (Sizes 003 - 006)

003 004 005 006
Nominal Airflow (cfm) 300 400 500 600
Nominal Airflow (l/s) 142 189 236 283
Fluid Cooling Capacity (Btu/hr)* 7,539 10,823 11,465 12,325
Fluid Cooling Capacity (kW)* 2.21 3.17 3.36 3.61
Motor Type Permanent Split Capacitor
Motor Nominal Power Output (Watts) 30 51 55 52
Motor Nominal Current (Amps) .36 .51 .49 .52
Fan Type Centrifugal Forward Curved Blades
Sound Pressure High (dB(A))** 37.1 37.4 39.1 40.4
Sound Pressure Medium (dB(A))** 34.6 34.9 35.8 38.8
Sound Pressure Low (dB(A))** 33.0 32.1 32.4 35.4
Water Flow (l/s) 0.06 0.09 0.09 0.10
Water Pressure Drop (kPa) 4.4 10.7 5.9 5.3
Coil (Row/FPI) 4 / 14
Coil Working Pressure (Mpa) 1.72
Connection In-Out (sweat) /Material 3/4" FPT (BSP) / Brass
Connection Condensate Drain / Material 3/4" MPT (BSP) / GI Steel

Notes:
* Base on motor at high speed, standard air and dry coil operation, 5.6°C water temperature rise; entering air temperature 24.4°C DB; 17.2°C WB, Entering water temperature 7.2°C.
** Sound measurement in accordance with Standard JIS8616-2006 (1.5m below the unit bottom).



42CET - Standard Unit (Sizes 008 - 014)

008 010 012 014
Nominal Airflow (Cfm) 800 1000 1200 1400
Nominal Airflow (l/s) 378 472 566 661
Fluid Cooling Capacity (Btu/hr)* 18,551 20,043 21,868 26,505
Fluid Cooling Capacity (kW)* 5.44 5.87 6.41 7.77
Motor Type Permanent Split Capacitor
Motor Nominal Power Output (Watts) 2x46 2x55 2x52 3x48
Motor Nominal Current (Amps) 0.96 0.98 1.04 1.65
Fan Type Centrifugal Forward Curved Blades
Sound Pressure High (dB(A))** 41.3 43.1 43.3 43.5
Sound Pressure Medium (dB(A))** 38.8 40.8 39.9 41.8
Sound Pressure Low (dB(A))** 34.6 37.2 37.6 39.8
Water Flow (l/s) 0.15 0.16 0.17 0.21
Water Pressure Drop (kPa) 12.1 15.2 7.4 12.2
Coil (Row/FPI) 4 / 14
Coil Working Pressure (Mpa) 1.72
Connection In-Out (sweat) /Material 3/4" FPT (BSP) / Brass
Connection Condensate Drain / Material 3/4" MPT (BSP) / GI Steel

Notes:
* Base on motor at high speed, standard air and dry coil operation, 5.6°C water temperature rise; entering air temperature 24.4°C DB; 17.2°C WB, Entering water temperature 7.2°C.
** Sound measurement in accordance with Standard JIS8616-2006 (1.5m below the unit bottom).



42CED - District Cooling Unit (Sizes 003 - 006)

003 004 005 006
Nominal Airflow (Cfm) 300 400 500 600
Nominal Airflow (l/s) 142 189 236 283
Fluid Cooling Capacity (Btu/hr)* 7,539 10,823 11,465 12,325
Fluid Cooling Capacity (kW)* 2.21 3.17 3.36 3.61
Motor Type Permanent Split Capacitor
Motor Nominal Power Output (Watts) 30 51 55 52
Motor Nominal Current (Amps) .36 .51 .49 .52
Fan Type Centrifugal Forward Curved Blades
Sound Pressure High (dB(A))** 37.1 37.4 39.1 40.4
Sound Pressure Medium (dB(A))** 34.6 34.9 35.8 38.8
Sound Pressure Low (dB(A))** 33.0 32.1 32.4 35.4
Water Flow (l/s) 0.06 0.09 0.09 0.10
Water Pressure Drop (kPa) 4.4 10.7 5.9 5.3
Coil (Row/FPI) 4 / 14
Coil Working Pressure (Mpa) 1.72
Connection In-Out (sweat) /Material 3/4" FPT (BSP) / Brass
Connection Condensate Drain / Material 3/4" MPT (BSP) / GI Steel

Notes:
* Base on motor at high speed, standard air and dry coil operation, 8.9°C water temperature rise; entering air temperature 24.4°C DB; 17.2°C WB, Entering water temperature 5.5°C.
** Sound measurement in accordance with Standard JIS8616-2006 (1.5m below the unit bottom).



42CED - District Cooling Unit (Sizes 008 - 014)

008 010 012 014
Nominal Airflow (Cfm) 800 1000 1200 1400
Nominal Airflow (l/s) 378 472 566 661
Fluid Cooling Capacity (Btu/hr)* 18,551 20,043 21,868 26,505
Fluid Cooling Capacity (kW)* 5.44 5.87 6.41 7.77
Motor Type Permanent Split Capacitor
Motor Nominal Power Output (Watts) 2x46 2x55 2x52 3x48
Motor Nominal Current (Amps) 0.96 0.98 1.04 1.65
Fan Type Centrifugal Forward Curved Blades
Sound Pressure High (dB(A))** 41.3 43.1 43.3 43.5
Sound Pressure Medium (dB(A))** 38.8 40.8 39.9 41.8
Sound Pressure Low (dB(A))** 34.6 37.2 37.6 39.8
Water Flow (l/s) 0.15 0.16 0.17 0.21
Water Pressure Drop (kPa) 12.1 15.2 7.4 12.2
Coil (Row/FPI) 4 / 14
Coil Working Pressure (Mpa) 1.72
Connection In-Out (sweat) /Material 3/4" FPT (BSP) / Brass
Connection Condensate Drain / Material 3/4" MPT (BSP) / GI Steel

Notes:
* Base on motor at high speed, standard air and dry coil operation, 8.9°C water temperature rise; entering air temperature 24.4°C DB; 17.2°C WB, Entering water temperature 5.5°C.
** Sound measurement in accordance with Standard JIS8616-2006 (1.5m below the unit bottom).
