Supra 1050

Supra range: The truck solution for all your distribution needs

BENEFITS

  • Constant evaporator airflow
  • Robust design
  • High reliability
  • Extreme low-noise capabilities

Developed for distribution environments with multiple doors openings, rely on the unmatched performance of the SUPRA range in your challenging operation.

The SUPRA range achieves superior pull-down and accurate temperature control at all set points. This performance is supported by a large range of evaporators with electric fans providing constant airflow independent of engine speed. Available in multi-temperature throughout the range, SUPRA offers enhanced load protection for all truck applications.

HIGH CAPACITY

Extended with three high capacity models, the Supra range is available up to 12 000 Watts. New fans increase airflow by 24% for quick temperature recovery and improved air management. The use of a

7 mm condenser and smaller compressor improve the units efficiency thanks to lower fuel consumption per Watt delivered.

ROBUST DESIGN

Building on hundreds of thousands of operating hours, SUPRA demonstrates a robust design both for aesthetics (strong composite material) and components (easy start) to extend the unit lifetime and reduce downtime. Maintenance time is also optimised thanks to easy accessibility.

BENEFITS

  • Constant evaporator airflow
  • Robust design
  • High reliability
  • Extreme low-noise capabilities
  • High cooling performance
COOLING CAPACITY Nominal
Diesel - High Speed
0°C/30°C
9210 W
-20°C/30°C
5830 W
Diesel - Low Speed
0°C/30°C
8100 W
-20°C/30°C
5080 W
Standby - 400V/3/50 Hz
0°C/30°C
8280 W
-20°C/30°C
5170 W


HEATING CAPACITY
Diesel
3520 W
Standby - 400V/3/50 Hz
2530 W


AIRFLOW
Diesel
3065 m3/h


ATP COMPLIANT
-
M983


WEIGHT
-
617 kg


DIMENSIONS
Height
699 mm
Width
1995 mm
Depth
971 mm

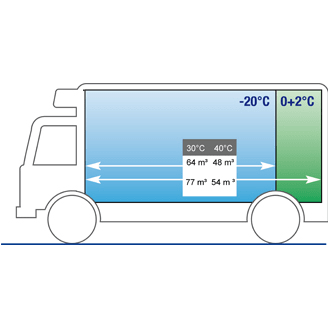

BOX SIZE RECOMMENDATION
+0°C
+30°C
77 m3
+40°C
55 m3
-20°C
+30°C
65 m3
+40°C
51 m3


SOUND EMISSION
Sound Power
Power Lwa
98 dB
Diesel - High Speed
Pressure
69.6 dB
Diesel - Low Speed
Pressure
67.2 dB
Standby - 400V/3/50 Hz
Pressure
61.5 dB


COMPONENTS
Engine
Displacement
1123 cc
# cylinders
3
Motor
Voltage
400V/3/50Hz
Power
9 kW
Compressor
Techno
Reciprocating
Model
O5K4
Controls
Easycold


REFRIGERANT
Refrigerant
Type
R452A
Charge
5.4 kg

Developed for distribution environments with multiple doors openings, rely on the unmatched performance of the SUPRA range in your challenging operation.

The SUPRA range achieves superior pull-down and accurate temperature control at all set points. This performance is supported by a large range of evaporators with electric fans providing constant airflow independent of engine speed. Available in multi-temperature throughout the range, SUPRA offers enhanced load protection for all truck applications.

HIGH CAPACITY

Extended with three high capacity models, the Supra range is available up to 12 000 Watts. New fans increase airflow by 24% for quick temperature recovery and improved air management. The use of a

7 mm condenser and smaller compressor improve the units efficiency thanks to lower fuel consumption per Watt delivered.

ROBUST DESIGN

Building on hundreds of thousands of operating hours, SUPRA demonstrates a robust design both for aesthetics (strong composite material) and components (easy start) to extend the unit lifetime and reduce downtime. Maintenance time is also optimised thanks to easy accessibility.

BENEFITS

  • Constant evaporator airflow
  • Robust design
  • High reliability
  • Extreme low-noise capabilities
  • High cooling performance
COOLING CAPACITY Nominal
Diesel - High Speed
0°C/30°C
9210 W
-20°C/30°C
5830 W
Diesel - Low Speed
0°C/30°C
8100 W
-20°C/30°C
5080 W
Standby - 400V/3/50 Hz
0°C/30°C
8280 W
-20°C/30°C
5170 W


HEATING CAPACITY
Diesel
3520 W
Standby - 400V/3/50 Hz
2530 W


AIRFLOW
Diesel
3065 m3/h


ATP COMPLIANT
-
M983


WEIGHT
-
617 kg


DIMENSIONS
Height
699 mm
Width
1995 mm
Depth
971 mm


BOX SIZE RECOMMENDATION
+0°C
+30°C
77 m3
+40°C
55 m3
-20°C
+30°C
65 m3
+40°C
51 m3


SOUND EMISSION
Sound Power
Power Lwa
98 dB
Diesel - High Speed
Pressure
69.6 dB
Diesel - Low Speed
Pressure
67.2 dB
Standby - 400V/3/50 Hz
Pressure
61.5 dB


COMPONENTS
Engine
Displacement
1123 cc
# cylinders
3
Motor
Voltage
400V/3/50Hz
Power
9 kW
Compressor
Techno
Reciprocating
Model
O5K4
Controls
Easycold


REFRIGERANT
Refrigerant
Type
R452A
Charge
5.4 kg
