Supra City 1000 Z MT
Supra City 1000 Z MT
Zero-engine refrigeration unit for urban distribution by truck, featuring reduced emissions and low noise
BENEFITS
- SUPRA range benefits
- Low emissions and noise
- Constant cooling capacity
- Constant evaporator airflow
- Zero engine emission
SUPRA CITY Z MT, ZERO-ENGINE REFRIGERATION UNIT.
SUPRA 1000 City Z MT is a refrigeration unit powered by the truck engine and designed for urban distribution, featuring constant cold, reduced emissions and low noise. It offers a total flexibility for multi-product deliveries with ultra-slim evaporators that can be adapted to large configuration requirement.Developed for distribution environments with multiple doors openings, rely on the unmatched performance of the SUPRA range in your challenging operation.
Low emissions and noise
Getting power from the Euro 5- compliant truck engine, Supra City 1000 Z MT significantly reduces emissions of nitrogen oxide (NOx), carbon monoxide (CO), hydrocarbons and particulate matter. Eliminating the primary source of noise and adding insulation equipment from Supra “Silent” version enables to reduce noise emissions.
Constant cooling capacity
Using the truck PTO allows for energy from the truck engine to be converted into a steady supply of power. Variable displacement technology, an oil pump combined with an electronic controller, allows the Supra City Z MT unit to deliver high and constant cooling capacity from truck engine idle speed.Refrigeration Capacity
(System net cooling capacity under A.T.P. Conditions at 30° C ambient)
| MTS 700 | MTS 1100 | MTS 1450 | MTS 2200 | MTD 1450 | MTD 2200 | |
| Capacity on engine power 0°C (W) | 6 030 | 8 480 | 9 480 | 10 000 | 9 620 | 10 460 |
| Capacity on engine power -20°C (W) | 3 260 | 4 770 | 5 330 | 5 600 | 5 240 | 6 290 |
| Capacity on electrical stand by 0°C (W) | 5 910 | 8 080 | 8 770 | 9 200 | 8 850 | 9 280 |
| Capacity on electrical stand by -20°C (W) | 3 030 | 4 430 | 5 060 | 5 245 | 5 110 | 5 740 |
Heating Capacity
| MTS 700 | MTS 1100 | MTS 1450 | MTS 2200 | MTD 1450 | MTD 2200 | |
| Diesel High speed 18°C/-18°C (W) | 4 680 | 4 710 | 4 890 | 5 200 | 4 890 | 5 200 |
| Standby 18°C/-18°C (W) | 4 270 | 4 320 | 4 530 | 4 770 | 4 530 | 4 770 |
Airflow
(High speed engine operation)
| MTS 700 | MTS 1100 | MTS 1450 | MTS 2200 | MTD 1450 | MTD 2200 | |
| (AMCA 21085) m3/hr | 1 100 | 2 100 | 2 400 | 3 500 | 2 350 | 3 600 |
Weight
(Including battery)
| S version | 481 kg |
Compressor
| Model | 05G |
| Displacement | 600 cm3 |
| n° of cylinders | 6 |
Electrical Stand by Motor
| Voltage / Phase / Frequency | 230/400/3/50 Hz |
| Rating | 9 kW |
Refrigerant Charge
| Type | R-404A |
| Charge | Depending on configuration |
Sound pressure
| High speed | 63 dBA |
Unit
| Dimensions | 971 x 1995 x 699 mm |
| Body opening | L 100 x H 100 mm |

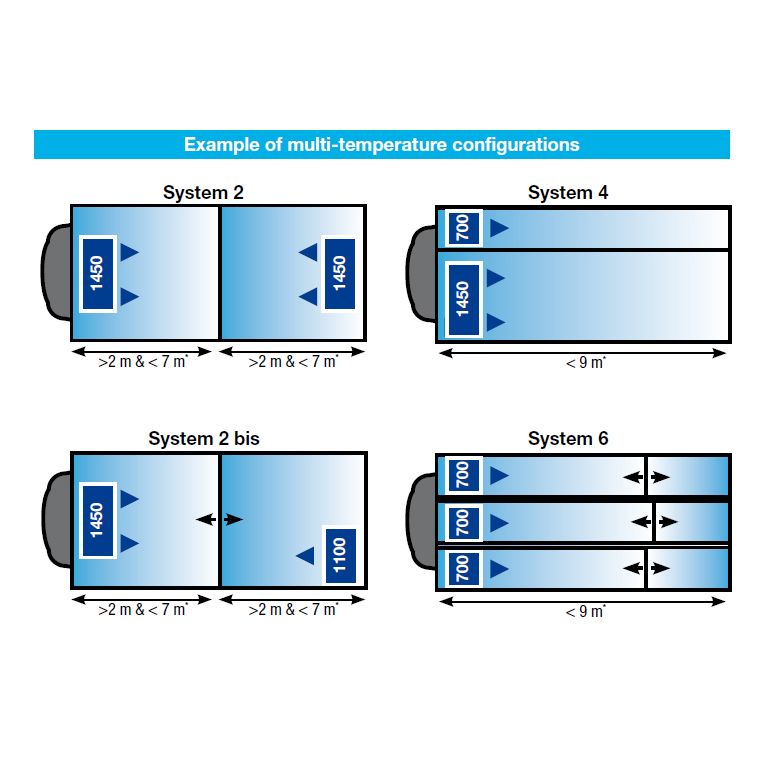

Example for multi-temperature configuration
